Stretch Fabric Acoustical Wall System

Product Overview

Stretch Fabric Acoustical Wall System is used for auditorium side wall treatment where acoustic absorption, smooth fabric finish, thermal insulation, and premium interior appearance are required.

The system uses a GI stud framework with mineral wool insulation, wire mesh, non-woven fabric, HDHMR support strips, vinyl tracks, and final stretch fabric finish. The fabric works as an acoustically transparent layer, allowing sound waves to pass through and get absorbed by the insulation behind it.

This system helps improve sound clarity, reduce noise, control reflections, and provide a seamless decorative wall finish.

Purpose

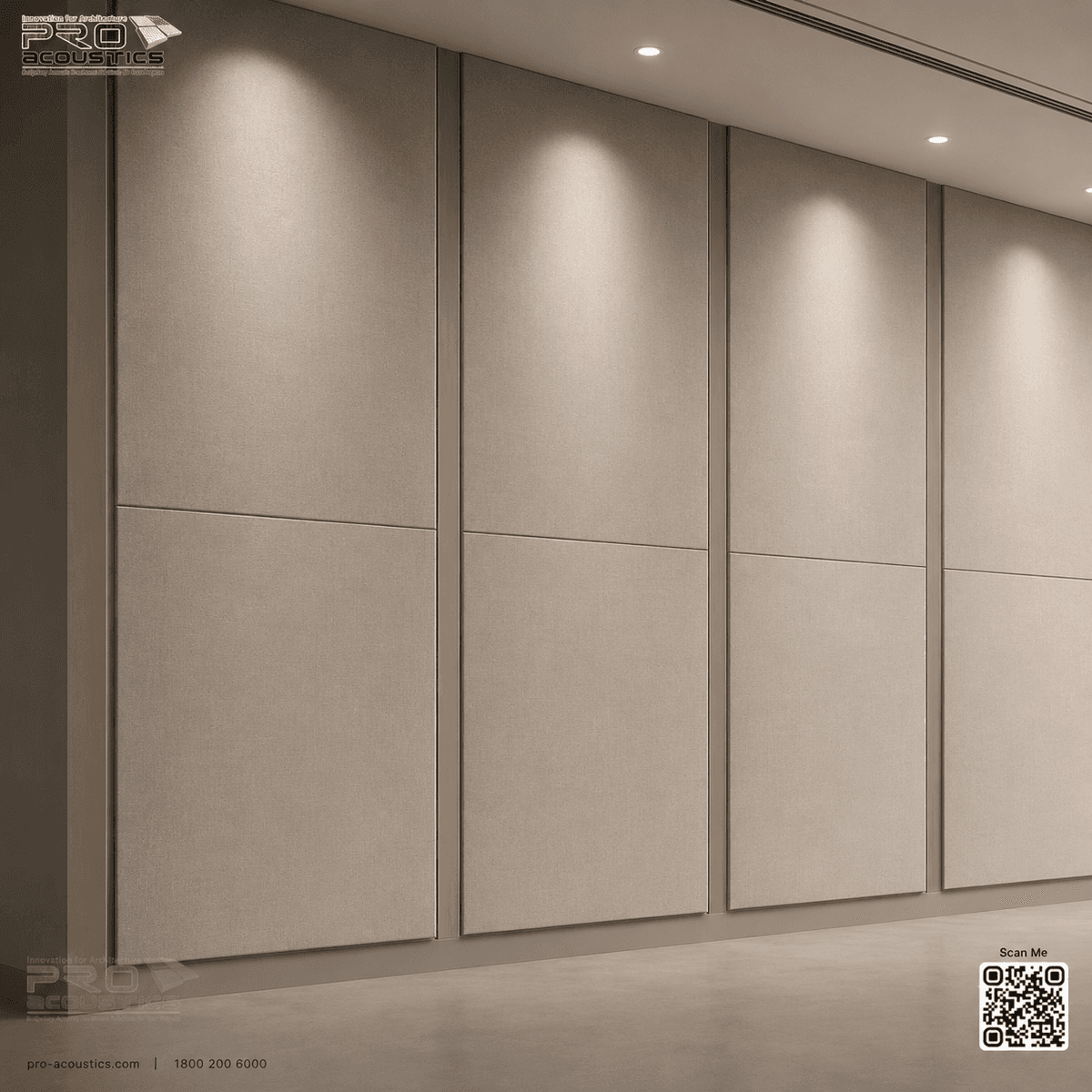

The purpose of this wall system is to improve auditorium acoustics while providing a clean and elegant fabric wall finish.

It helps in:

• Reducing echo and reverberation
• Absorbing mid-to-high frequency sound
• Improving speech and music clarity
• Supporting low-frequency absorption with calculated air gap
• Providing thermal insulation
• Creating a smooth and seamless wall appearance

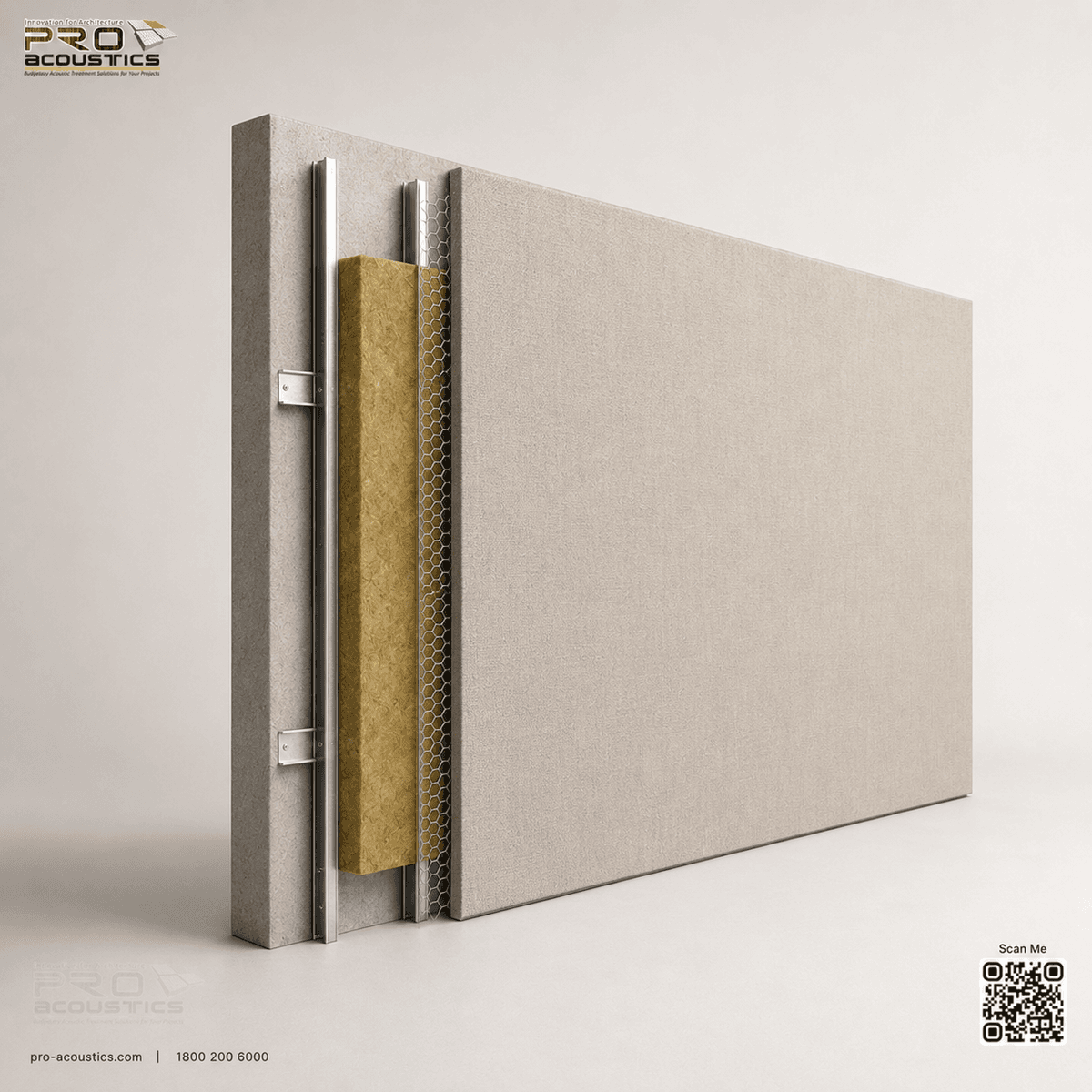

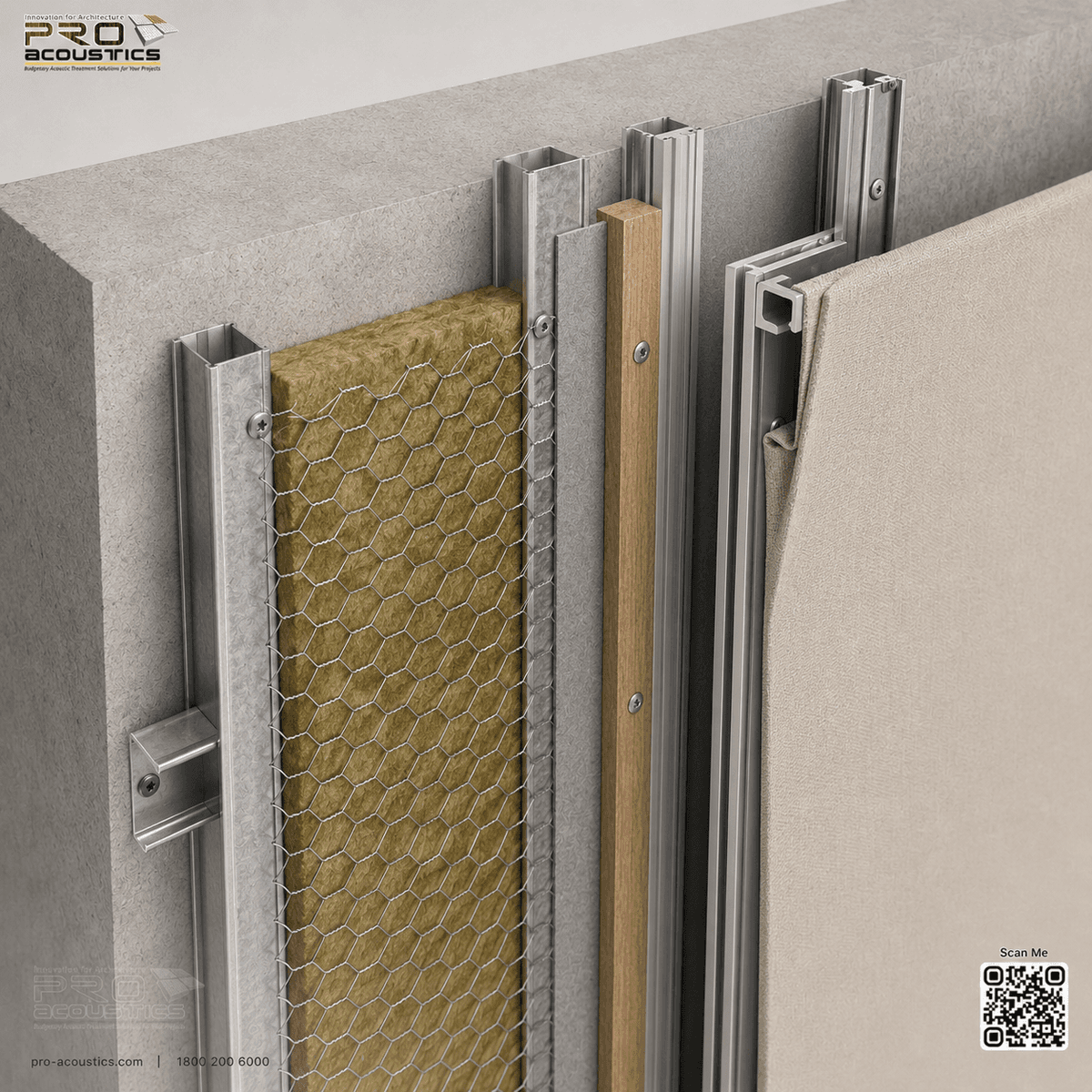

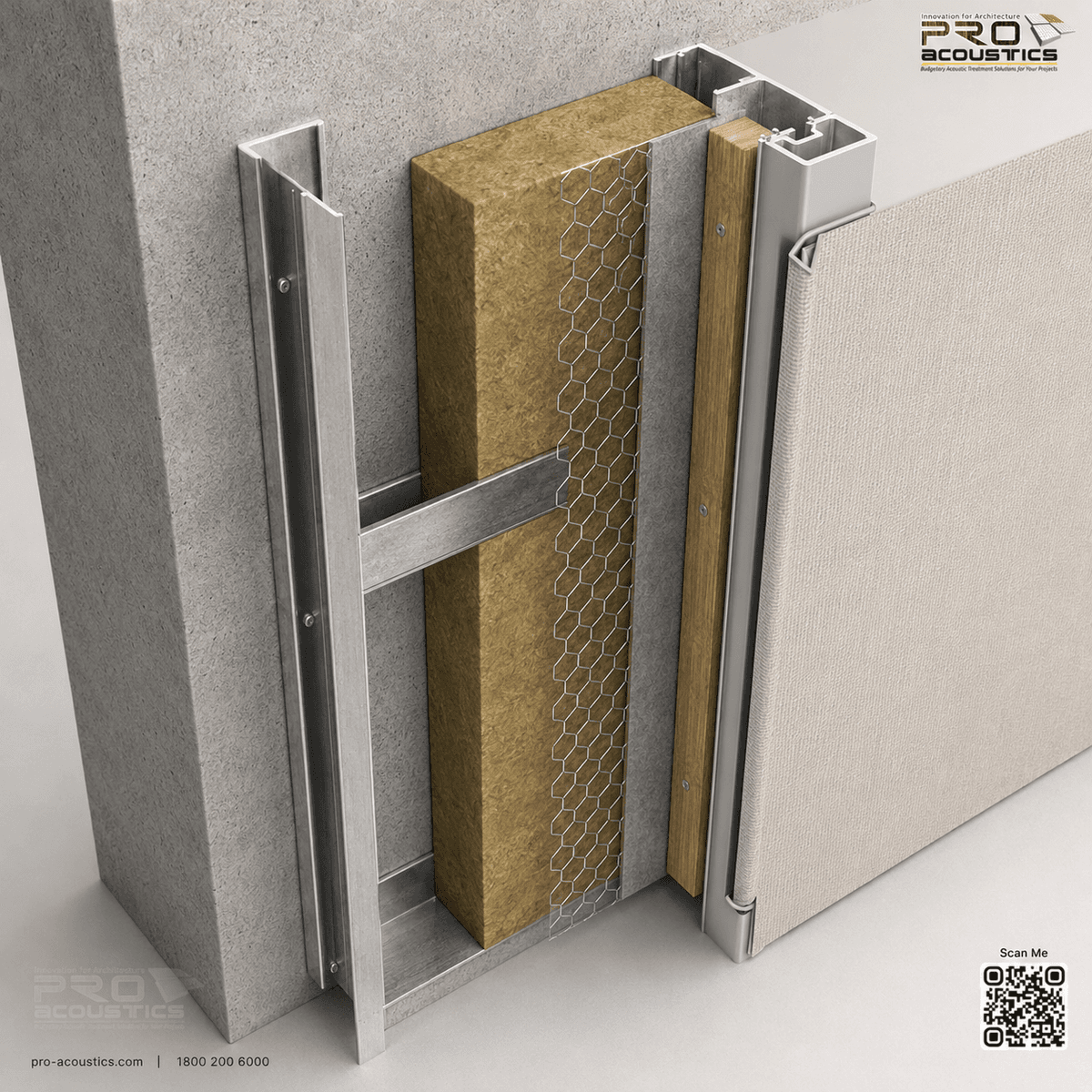

Installation Layer / Actual Process

1. Base Wall / Structural Surface

The work starts from the existing wall surface. Wall levels, panel layout, track lines, and fabric design pattern are marked as per approved architectural drawings and EIC instructions.

2. GI Stud Framework

Lightweight GI stud channels are fixed to create the support framework.

• GI stud channel: 50 mm x 0.5 mm
• Stud spacing: 450 mm c/c

3. Mineral Wool Insulation

Mineral Wool RB Slabs are placed inside the framework to improve acoustic absorption.

• Size: 1000 mm x 500 mm
• Thickness: 50 mm
• Density: 48 kg/m³

4. Wire Mesh & Non-Woven Fabric

Galvanized hexagonal wire mesh is fixed to secure the insulation. Plain spun bond non-woven fabric is applied over it for air filtration and protection.

5. HDHMR Support Strips

Customized 12 mm High-Density High-Moisture Resistant board strips are fixed over the GI frame to provide strength and support for vinyl track fixing.

6. Vinyl Track Fixing

12 mm vinyl tracks are screw-fixed onto the HDHMR strips to hold and stretch the fabric properly.

7. Stretch Fabric Installation

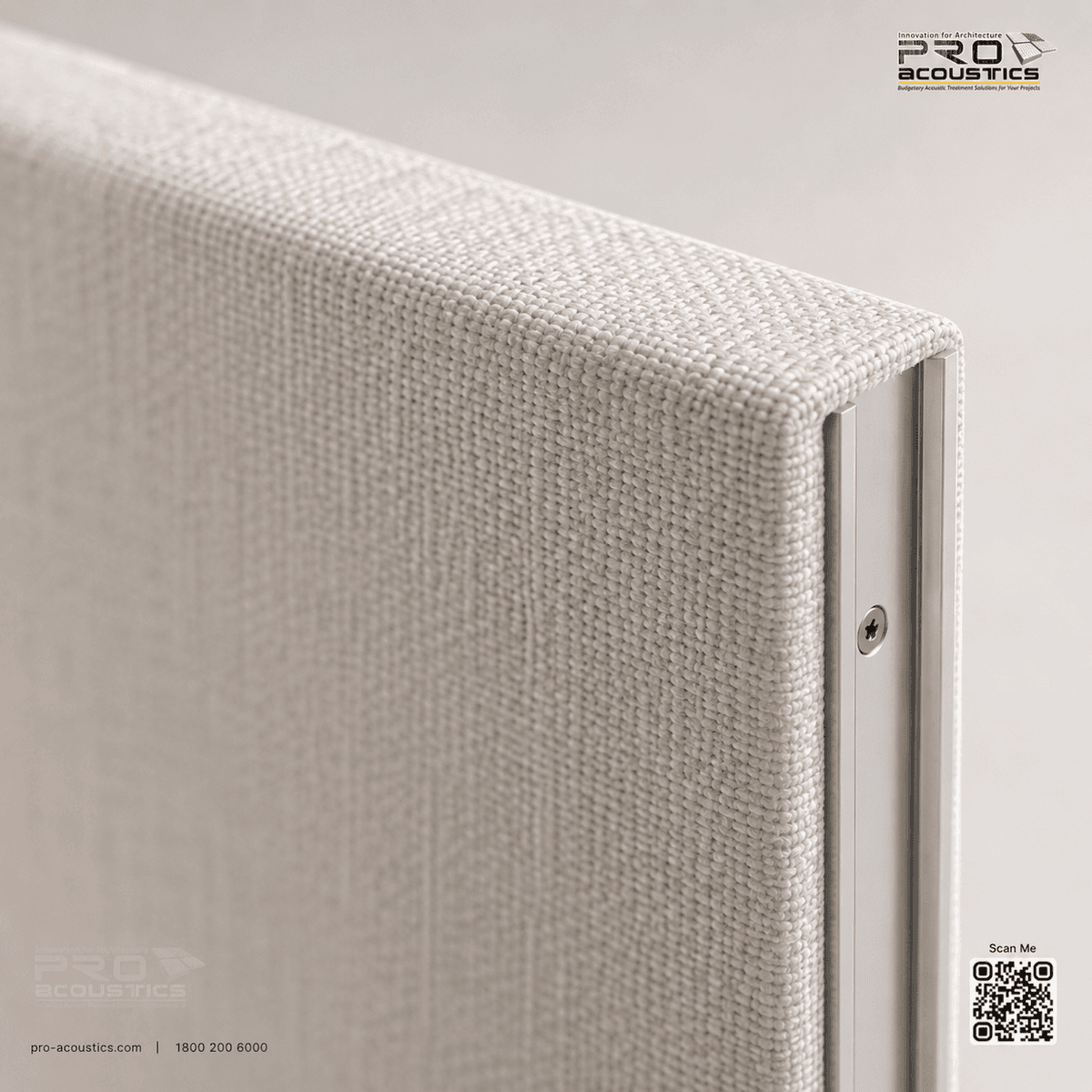

The selected stretch fabric is stretched and secured into the vinyl tracks to achieve a smooth, seamless, and neat final finish.

Key Features

• Designer stretch fabric acoustic wall system

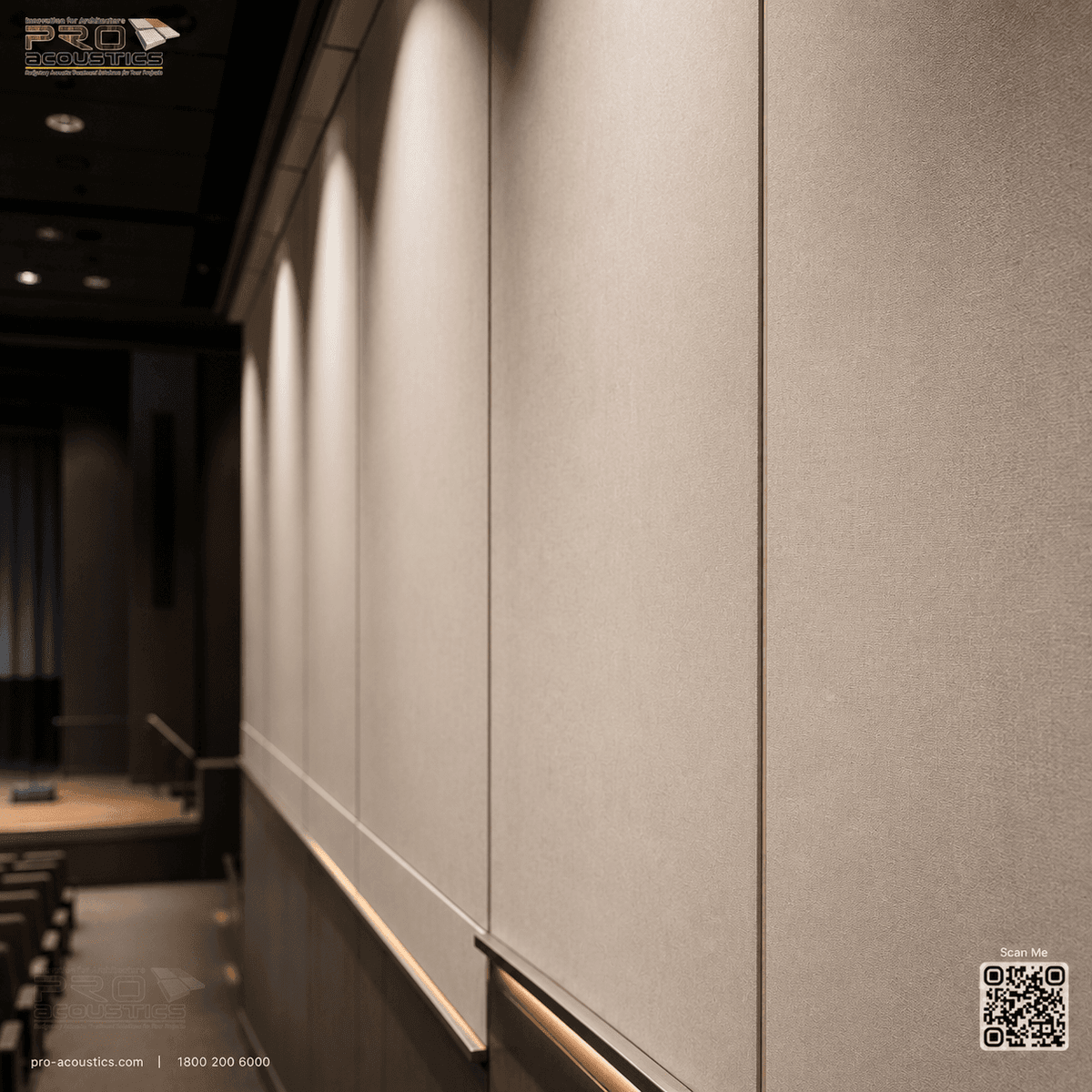

• Suitable for auditorium side walls
• Acoustically transparent fabric finish
• Mineral wool backing for sound absorption
• NRC performance up to 1.00
• Helps reduce noise and improve sound clarity
• Supports mid-to-high frequency absorption
• Calculated air gap for better acoustic performance
• Provides thermal insulation
• Moisture, mold, and pest resistant system
• Smooth seamless fabric finish
• Installed with vinyl tracks for clean detailing

Technical Information

• Product Type: Stretch Fabric Acoustical Wall System
• Application: Auditorium side walls
• GI Stud Channel: 50 mm x 0.5 mm
• Stud Spacing: 450 mm c/c
• Insulation Material: Mineral Wool RB Slab
• Insulation Size: 1000 mm x 500 mm
• Insulation Thickness: 50 mm
• Insulation Density: 48 kg/m³
• Support Layer: Galvanized hexagonal wire mesh
• Protection Layer: Plain spun bond non-woven fabric
• Support Strip: 12 mm HDHMR strip
• Track System: 12 mm vinyl track
• Final Finish: Stretch fabric
• Acoustic Performance: NRC up to 1.00
• Installation: As per approved drawings and EIC instructions

Scope of Work

The scope includes providing and fixing of designer stretch fabric acoustical wall system for auditorium side walls.

The work includes marking, layout setting, GI stud framework, mineral wool filling, wire mesh fixing, non-woven fabric layer, HDHMR strip fixing, vinyl track installation, stretch fabric fixing, alignment checking, and final cleaning.

All required tools, machinery, manpower, staging, consumables, screws, fasteners, tracks, insulation, fabric, and installation accessories shall be included. The work shall be executed by skilled labour as per approved architectural drawings, acoustic requirements, safety norms, and Engineer-in-Charge instructions.

Quality & Safety Requirements

• Framework shall be properly aligned and securely fixed
• Mineral wool shall be placed uniformly inside the cavity
• Wire mesh and non-woven fabric shall be fixed properly
• HDHMR strips shall provide stable support for vinyl tracks
• Fabric shall be stretched smoothly without wrinkles or sagging
• Joints and edges shall be neat and seamless
• Air gap shall be maintained as per acoustic requirement
• Work at height shall follow all safety protocols
• Final installation shall be completed as per EIC instructions
