Detailed System Overview & Scope of Work

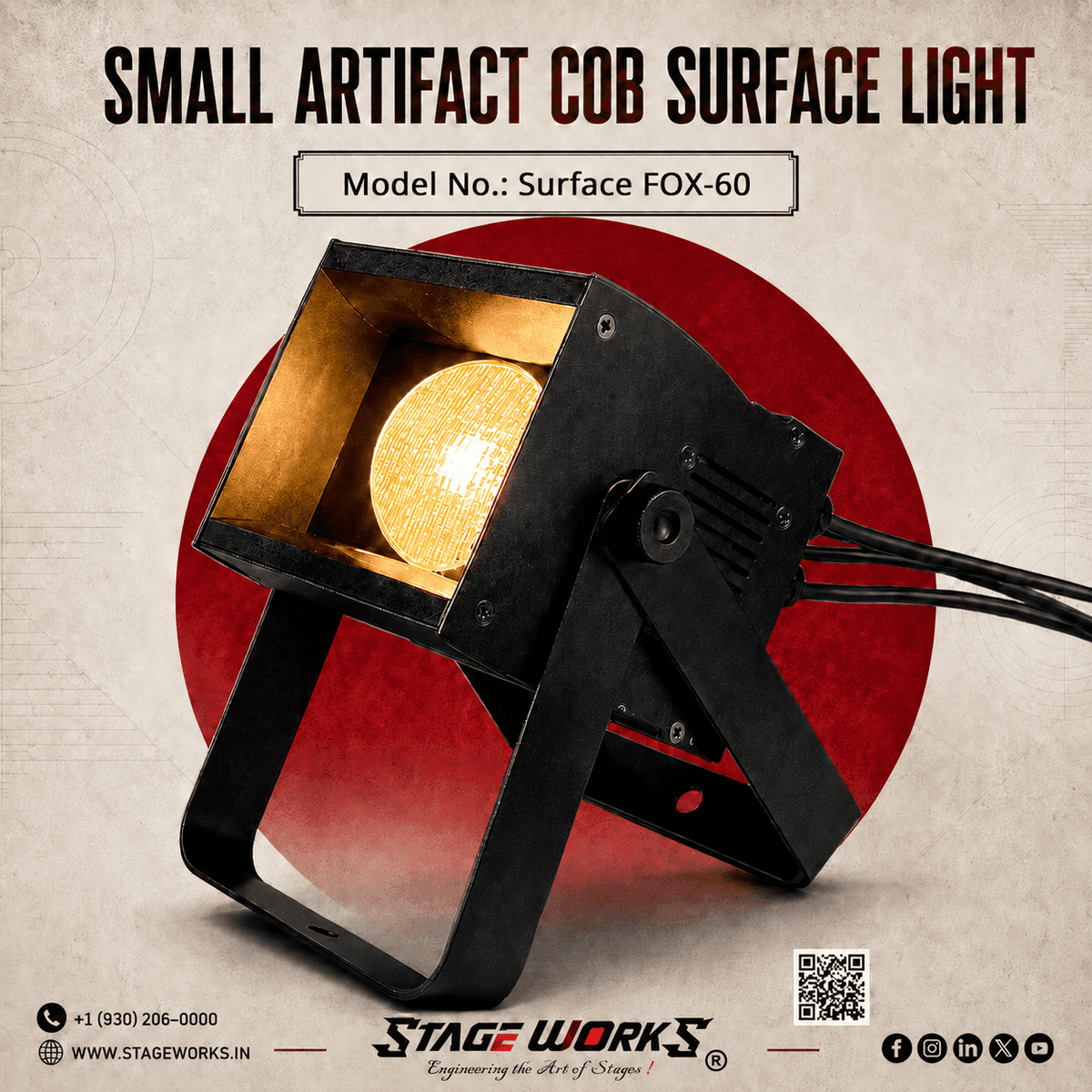

Small Artifact COB Surface WW + W Light
Product Overview
The Small Artifact COB Surface WW + W Light is a compact professional lighting fixture designed for controlled surface illumination, display lighting, stage detail highlighting, studio lighting, and indoor architectural applications. It is suitable for auditoriums, theatres, studios, conference spaces, galleries, display areas, and multipurpose indoor venues.
The fixture uses a 60W LED source with optional warm white or white colour temperature, high CRI output, selectable beam angle, DMX512 control, manual control, RJ45 connectivity, and silent fan operation for reliable and low-noise performance.
Purpose
The purpose of this COB surface light is to provide focused and clean illumination for small stage areas, display zones, architectural highlights, and indoor performance spaces. The optional 35° or 60° beam angle allows flexible lighting coverage as per site and application requirements.
Key Features
• Small Artifact COB Surface Light
• WW + W lighting option
• 60W LED light source
• 65W power consumption
• Colour temperature option: 3200K or 6500K
• Beam angle option: 35° or 60°
• High CRI: 90
• LED working life: 50,000 hours
• DMX512 and manual control support
• 2CH channel mode
• RJ45 connector support
• Silent fan operation
• Suitable for indoor surface, stage, studio, and display lighting applications
Technical Specifications
• Product Type - Small Artifact COB Surface WW + W Light
• Input Voltage - AC100–240V, 50–60Hz
• Power - 65W
• Light Source - 60W LED
• Colour Temperature - 3200K or 6500K optional
• Beam Angle - 35° or 60° optional
• CRI - 90
• LED Working Life - 50,000 hours
• Control Mode - DMX512 / Manual Control
• Channel Mode - 2CH
• Connector - RJ45 connectors
• Cooling - Silent fans
• Installation - As per approved drawings and EIC instructions
Scope of Work
The scope includes supply, installation, laying, testing, commissioning, and programming of Small Artifact COB Surface WW + W Lights for indoor stage, studio, display, and architectural lighting applications.
The work includes fixture supply, installation as per approved drawings, DMX/RJ45 connectivity, manual control setup, beam angle selection, colour temperature verification, calibration, testing, commissioning, and final handover. All necessary tools, machinery, manpower, staging, consumables, fixing accessories, and installation materials shall be included for complete execution.
Quality & Safety Requirements
• Fixture shall be supplied as per approved technical specifications
• Colour temperature and beam angle shall be verified before commissioning
• DMX512 and manual control functions shall be tested
• 2CH operation shall be checked during programming
• RJ45 connectivity and silent fan operation shall be verified
• Fixture shall be properly installed, calibrated, and commissioned
• Installation shall follow approved drawings and EIC instructions
• Any deviation from approved specification shall not be accepted
Training & Warranty
Comprehensive onsite training shall be provided to the end user for fixture operation, DMX control, manual operation, basic focusing, safety handling, and maintenance.
All products shall be covered under the approved project warranty terms, or minimum warranty period as required in the project specification.
