Detailed System Overview & Scope of Work
Pearl 1024B Lighting Console
Product Overview
The Pearl 1024B Lighting Console, Model No. AURA P-1024B, is a professional DMX512 stage lighting control console designed for auditoriums, theatres, studios, events, concerts, and live performance applications. It is used to control moving heads, scanners, dimmers, LED fixtures, colour lights, gobo effects, and other DMX-compatible stage lighting equipment.
The console supports up to 1024 DMX channels and can control up to 96 computer lights. It includes scene storage, multi-step scene programming, graphics generator, lamp library support, USB flash drive reading, and 3-pin XLR DMX output connectors, making it suitable for professional lighting programming and live show operation.
Purpose
The purpose of the Pearl 1024B Lighting Console is to provide centralized control for stage lighting fixtures and dimming systems. It allows the lighting operator to program scenes, run multiple lighting effects, control fixture movement, adjust dimming, manage colour/gobo/focus parameters, and operate lighting sequences during performances.
It is suitable for auditorium stage shows, theatre productions, cultural programs, school and college auditoriums, concerts, event halls, studios, and multipurpose performance spaces.
Key Features
• Professional DMX512 lighting control console
• Model No.: AURA P-1024B
• Supplied without flight case
• Supports 1024 DMX control channels
• Can control up to 96 computer lights
• Supports fixture address code reconfiguration
• Supports horizontal and vertical switching
• Supports lamp channel reverse output
• Supports lamp channel sliding mode switching
• Each computer light supports up to 40 control channels + 40 fine-tuning channels
• Pearl R20 light library support
• 60 scenes can be saved
• 10 scenes can be run at the same time
• Up to 600 total steps in multi-step scenes
• Fade-in, fade-out, and LTP slide support
• Push-pin start scenes and dimming support
• Interlock scene support
• Point control scene support
• Built-in graphics generator
• Supports Dimmer, P/T, RGB, CMY, Colour, Gobo, Iris, and Focus graphics
• 135 built-in graphic effects
• Supports circle, spiral, rainbow, chase, and other graphic track effects
• Adjustable graphic parameters including amplitude, speed, interval, wave, and direction
• Up to 5 graphics/images can run at the same time
• Master fader support for global, replay, and immediate blackout functions
• Rotary dial adjustment of channel values
• Fader adjustment of channel values
• Fader dimming support
• USB flash drive reading support
• Supports FAT32 format
• 3-pin XLR DMX connectors

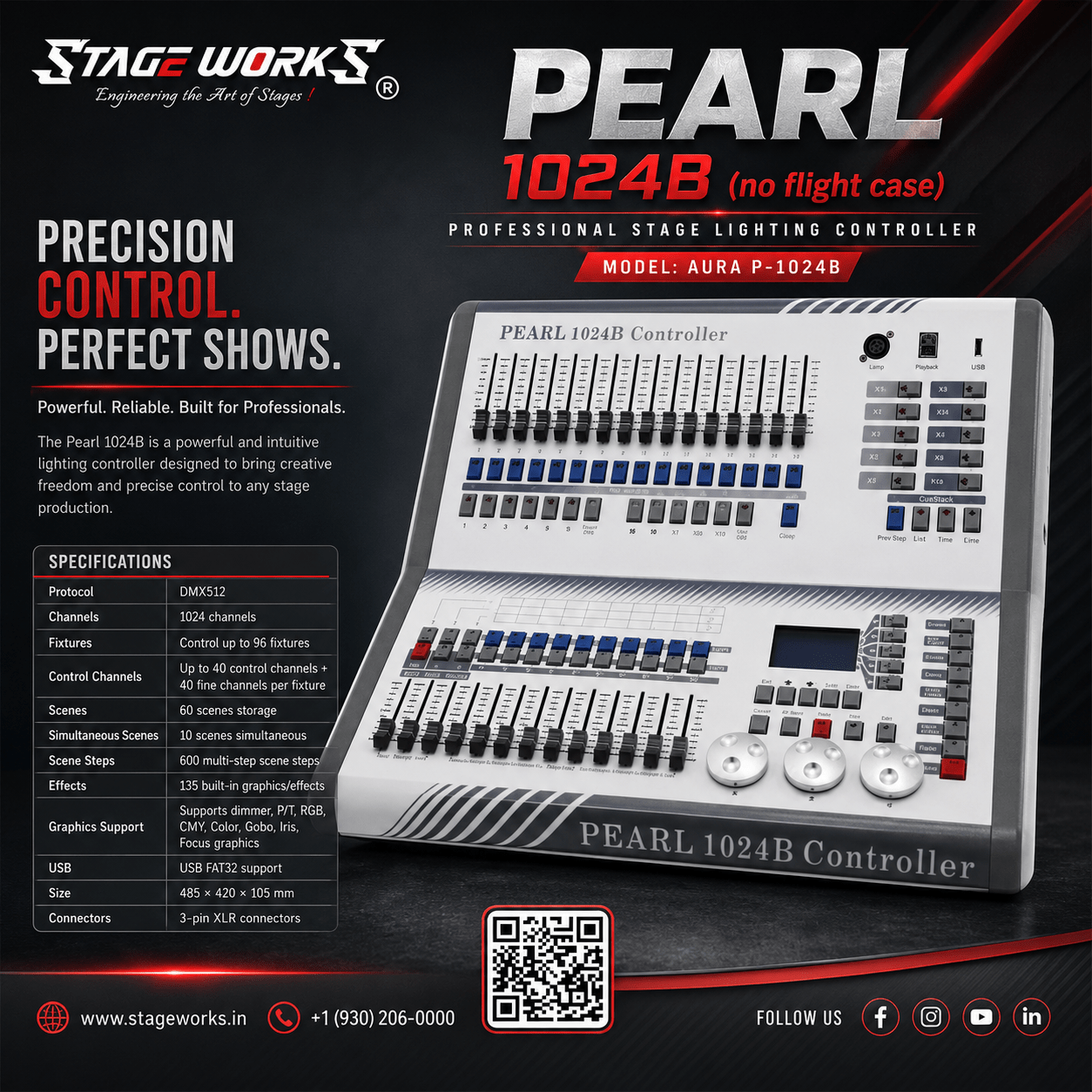

Technical Specifications
• Product Type - Professional DMX512 Lighting Console
• Model No. - AURA P-1024B
• Console Type - Pearl 1024B
• Supply Condition - Without flight case
• Control Protocol - DMX512
• Number of Channels - 1024
• Number of Computer Lights - 96
• Fixture Address Reconfiguration - Supported
• Horizontal / Vertical Switching - Supported
• Lamp Channel Reverse Output - Supported
• Lamp Channel Sliding Mode Switching - Supported
• Control Capacity per Fixture - Up to 40 control channels + 40 fine-tuning channels
• Light Library - Pearl R20 light library
• Scene Storage - 60 scenes
• Simultaneous Scene Running - 10 scenes
• Multi-Step Scene Capacity - 600 total steps
• Time Control - Supported
• Fade Control - Fade-in, fade-out, and LTP slide
• Push-Pin Scene Start - Supported
• Interlock Scenario - Supported
• Point Control Scenario - Supported
• Graphics Generator - Supported
• Graphics Types - Dimmer, P/T, RGB, CMY, Colour, Gobo, Iris, Focus
• Built-in Graphic Tracks - 135 effects
• Graphic Effects - Circle, spiral, rainbow, chase, and other effects
• Graphic Parameters - Amplitude, speed, interval, wave, and direction
• Simultaneous Graphics Running - Up to 5
• Master Fader - Global, replay, immediate blackout
• Channel Value Adjustment - Rotary dial and fader adjustment
• USB Support - USB flash drive reading
• USB Format - FAT32
• DMX Connector - 3-pin XLR connectors
• Product Size - 485 mm x 420 mm x 105 mm
• Application - Auditorium, theatre, stage, studio, event, concert, and live performance lighting control
Scope of Work
The scope includes supply, installation, connection, configuration, testing, commissioning, and basic programming support of Pearl 1024B Lighting Console, Model No. AURA P-1024B, for stage lighting control applications.
The work includes console placement, power connection, DMX512 output connection through 3-pin XLR connectors, fixture patching, DMX address configuration, scene programming, dimmer and moving light control setup, graphics generator testing, multi-step scene playback testing, USB reading verification, and final commissioning with connected lighting fixtures.
All required tools, manpower, connectors, cables, configuration support, accessories, consumables, and installation materials shall be included as per project requirement and Engineer-in-Charge instructions.
Quality & Safety Requirements
• Console shall be supplied as per approved model and technical specifications
• 1024 DMX channel operation shall be verified
• Control of connected computer lights and dimmers shall be tested
• 3-pin XLR DMX output connection shall be properly terminated
• Scene storage and simultaneous scene playback shall be checked
• Multi-step scene programming and playback shall be tested
• Built-in graphics generator and 135 effects shall be verified
• Rotary dial, fader control, master fader, and blackout functions shall be checked
• USB flash drive reading and FAT32 format support shall be verified
• Console shall be tested with connected stage lighting fixtures before handover
• Installation shall follow approved lighting control layout and EIC instructions
• Any deviation from approved specification shall not be accepted
Training & Warranty
Basic onsite training shall be provided to the end user for console startup, fixture patching, DMX addressing, channel control, scene programming, multi-step scene operation, graphics generator use, fader operation, blackout function, USB reading, data handling, and basic troubleshooting.
The product shall be covered under the approved project warranty terms or minimum warranty period as required in the project specification.

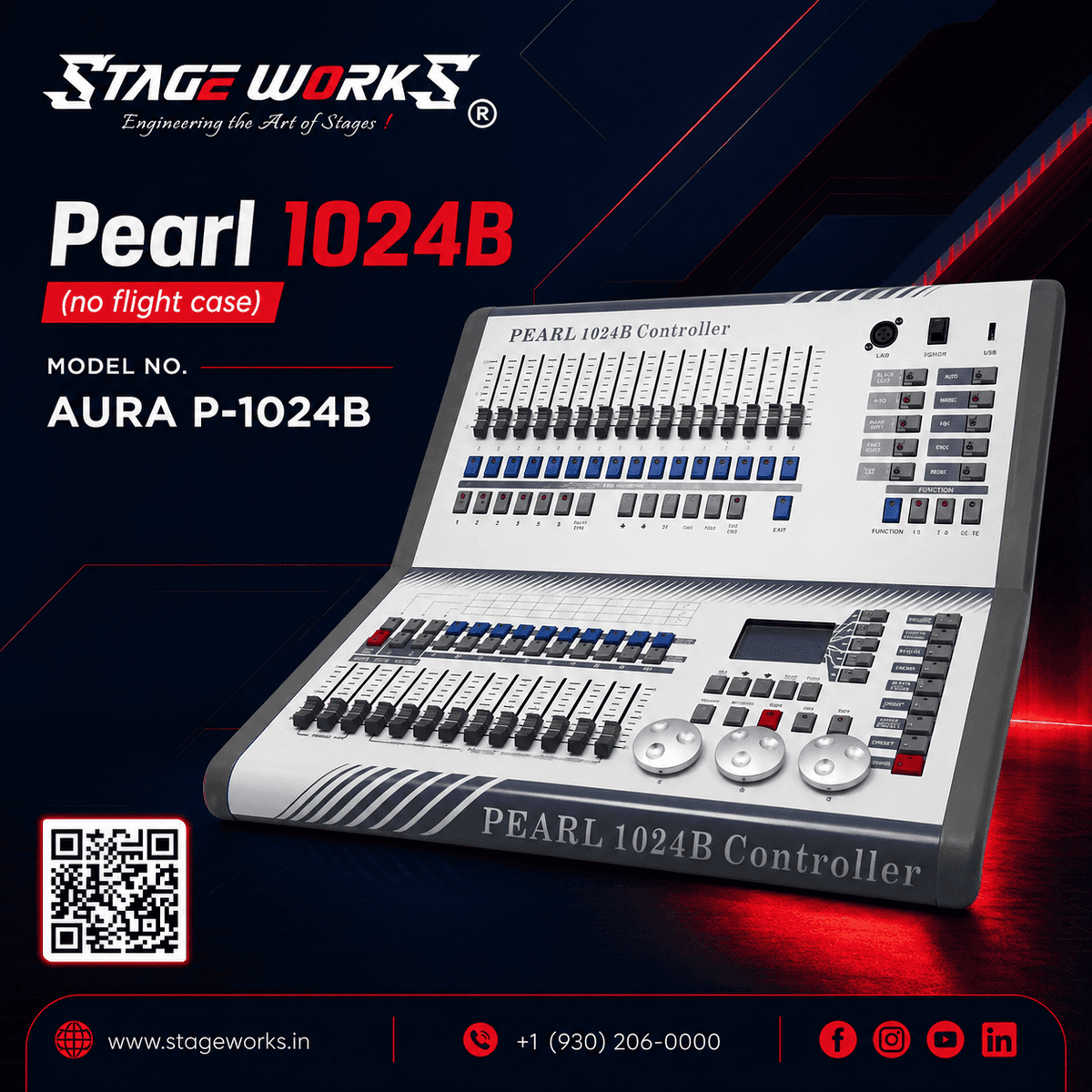

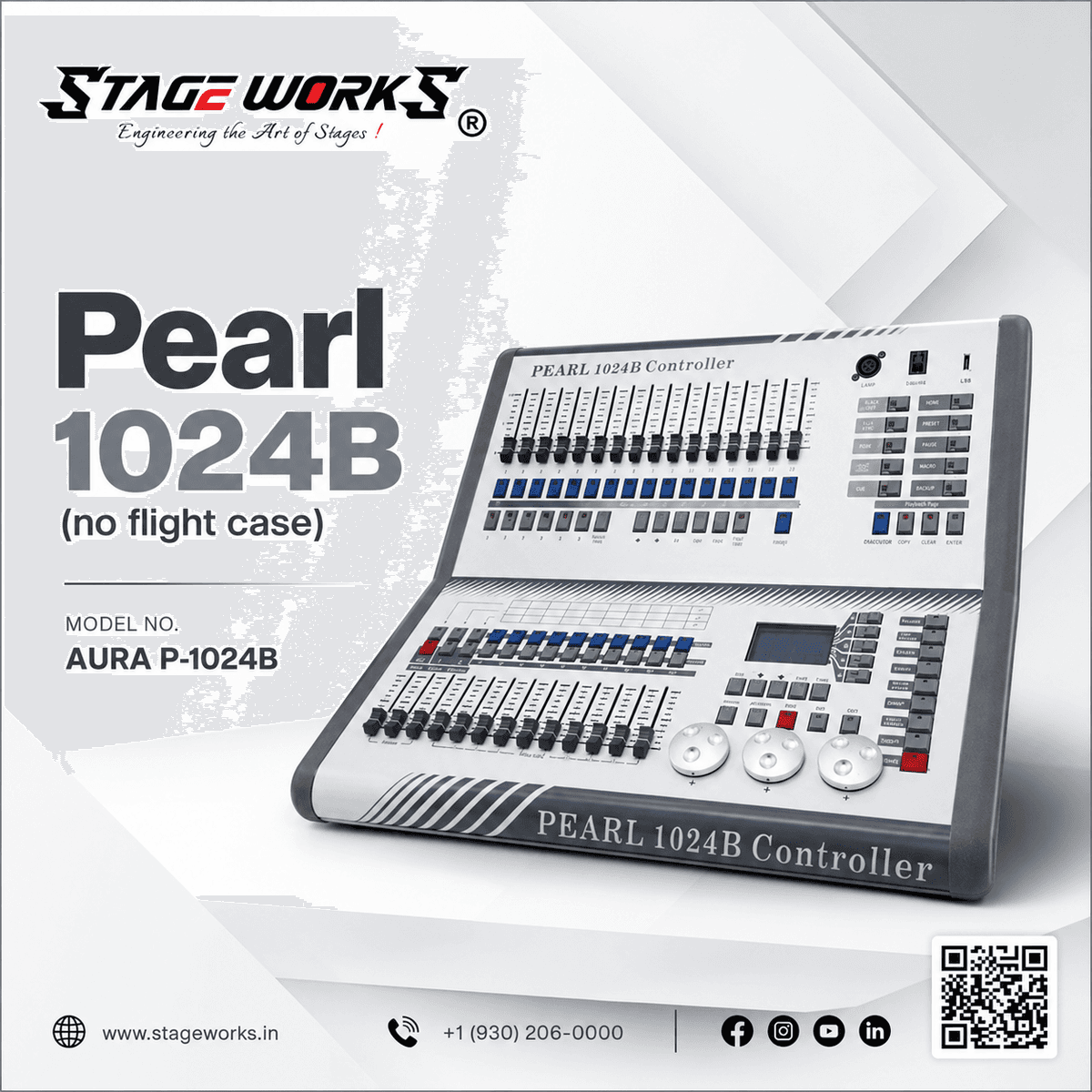

Pearl 1024B Lighting Console (AURA P-1024B)
The Pearl 1024B Lighting Console, Model No. AURA P-1024B, is a professional DMX512 stage lighting controller designed for auditoriums, theatres, studios, events, concerts, and live performance applications. It supports 1024 DMX channels and can co...
