Detailed System Overview & Scope of Work

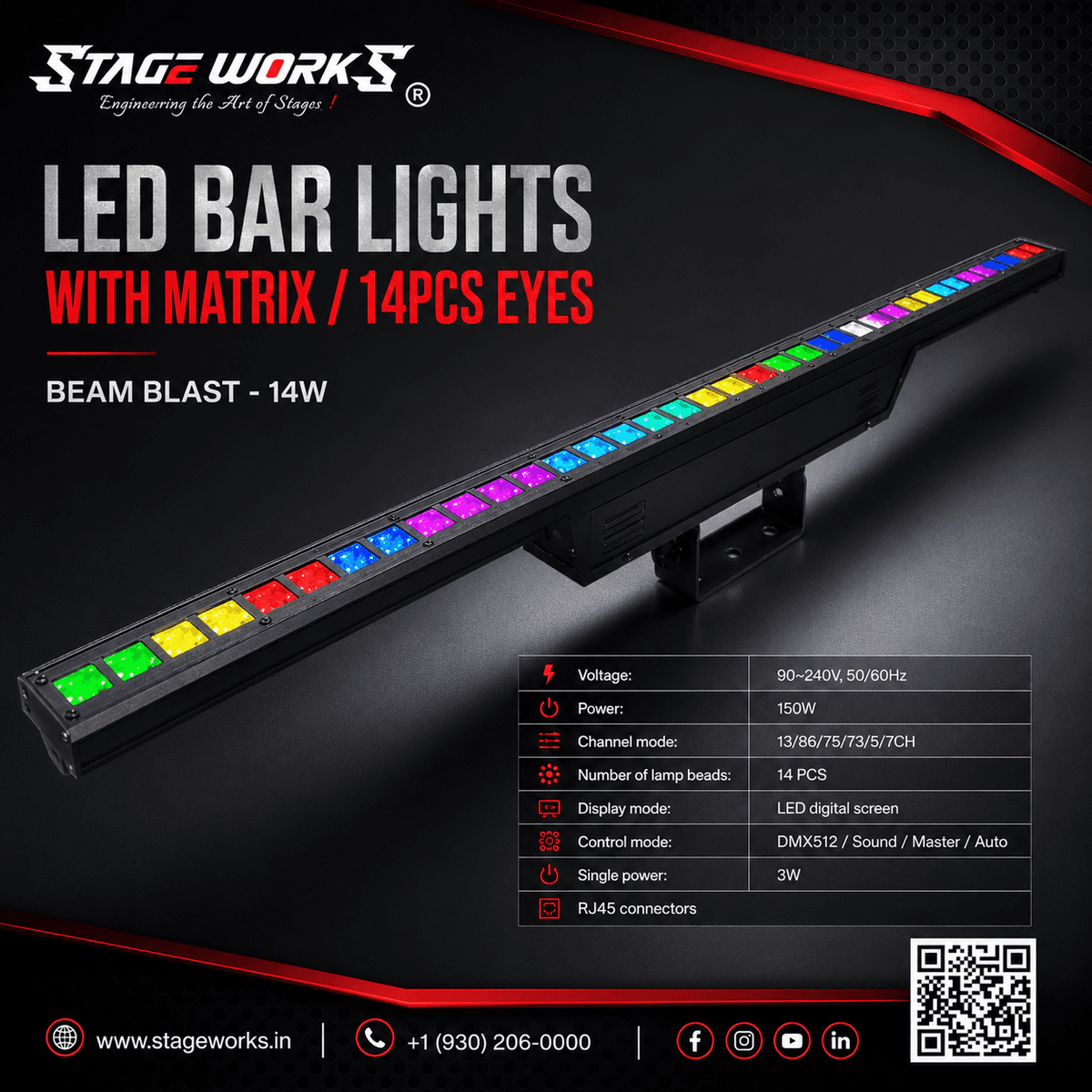

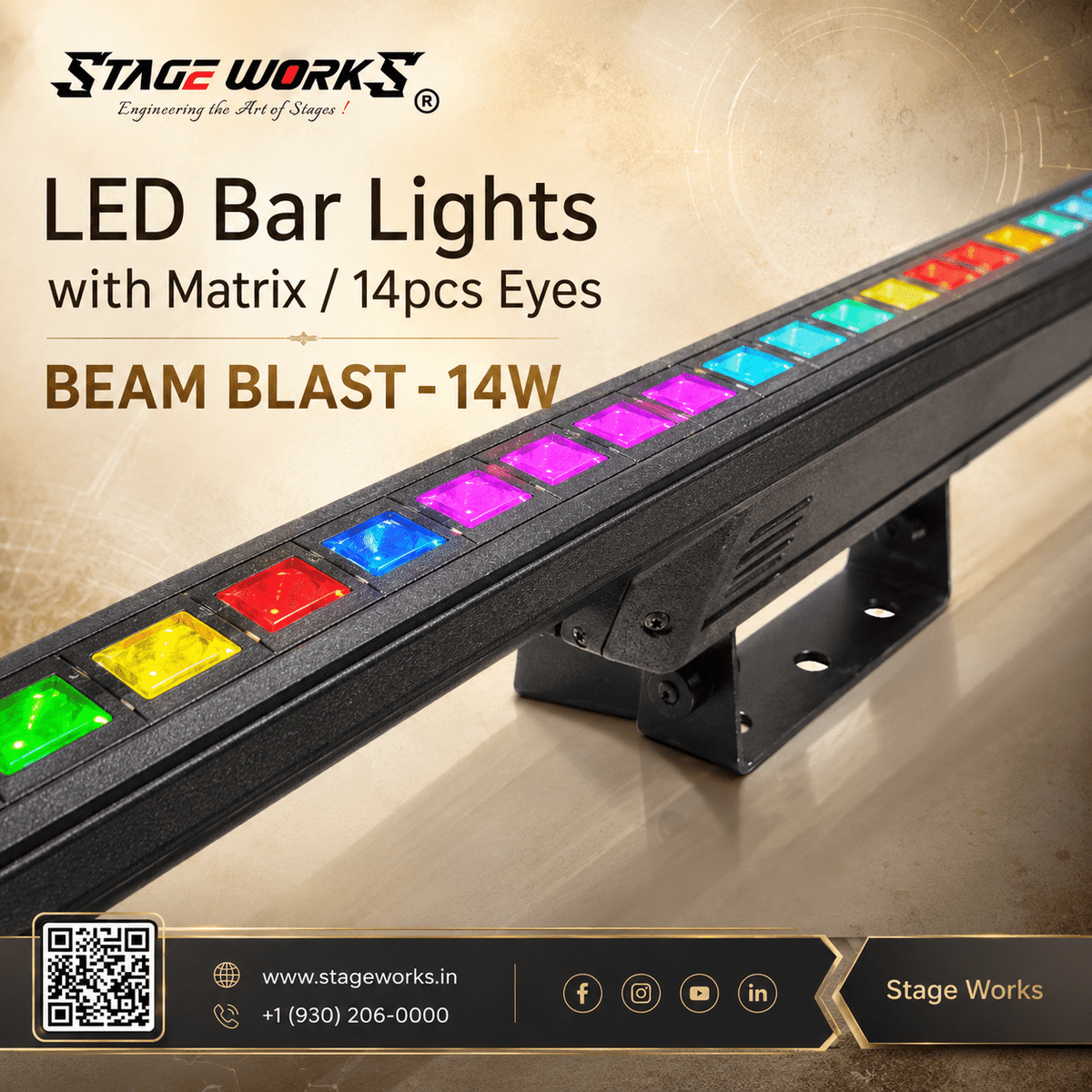

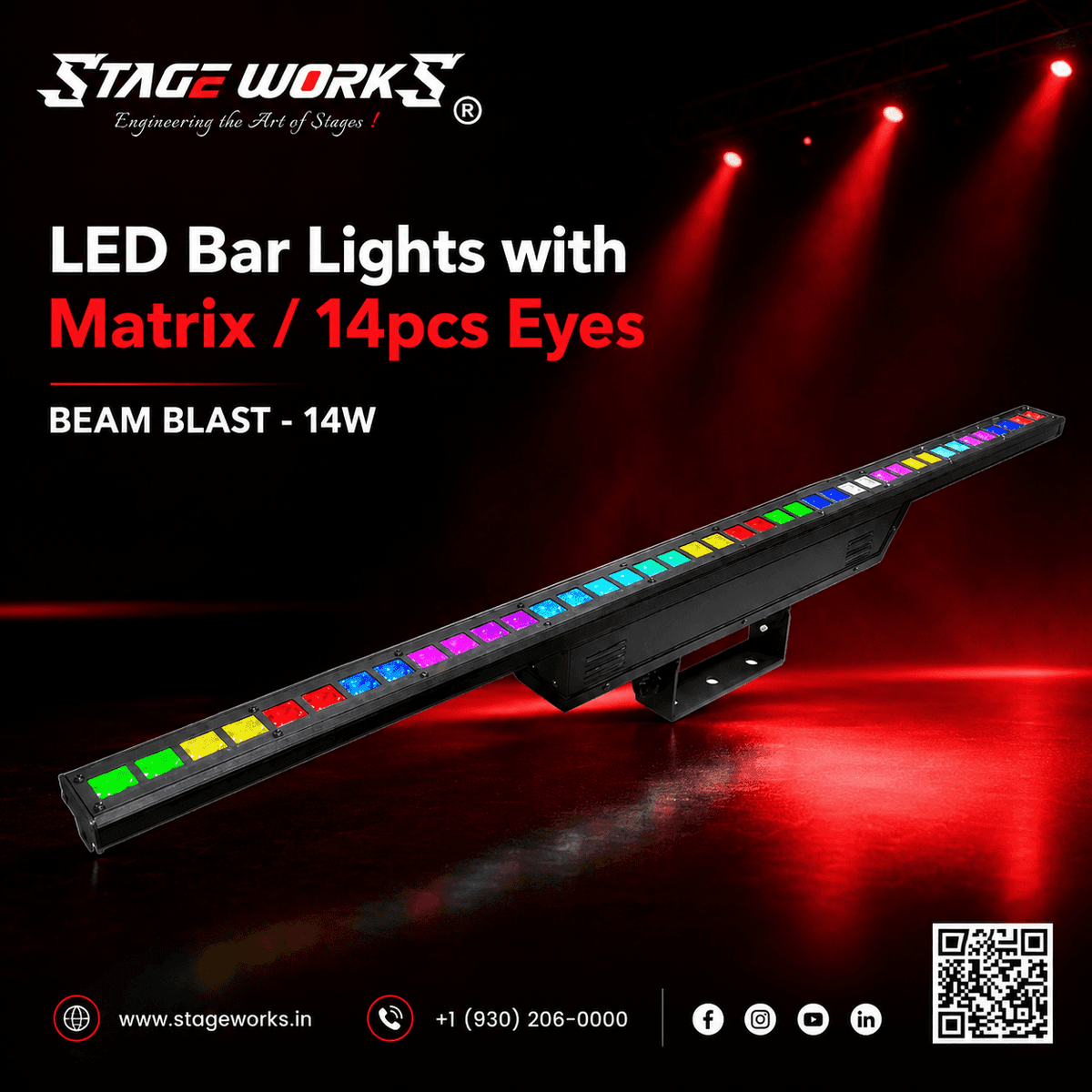

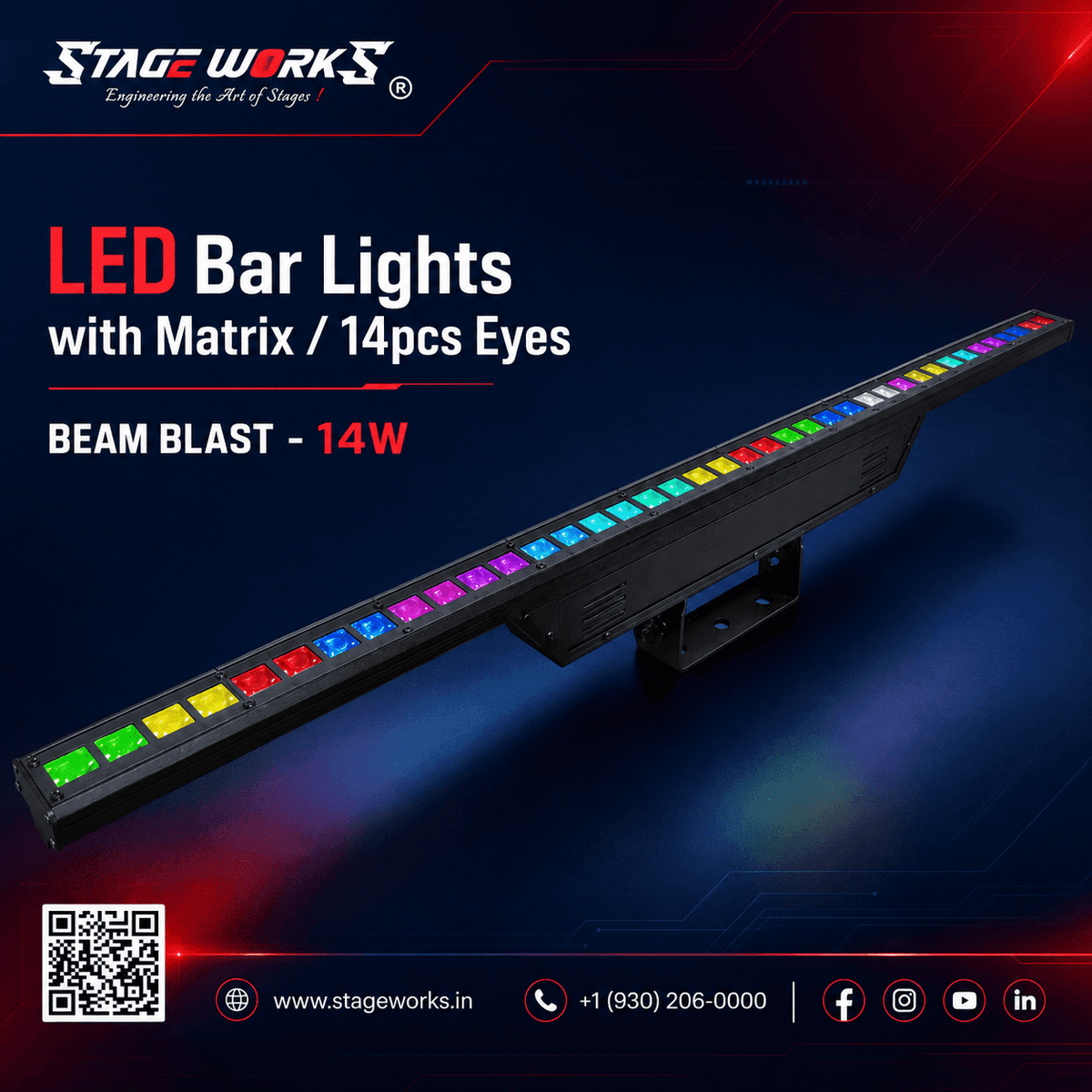

LED Matrix Bar Light with 14 Eyes
Product Overview
The LED Matrix Bar Light with 14 Eyes is a professional stage effect lighting fixture designed for dynamic matrix effects, colour patterns, chase effects, sound-active scenes, and stage atmosphere enhancement. It is suitable for auditoriums, theatres, stages, event spaces, studios, clubs, and multipurpose performance halls.
The fixture is equipped with 14 pcs LED lamp beads with 3W single power output and supports multiple DMX channel modes for flexible programming. It includes DMX512, Sound, Master, and Auto control modes with LED digital screen display for easy operation and configuration.
Purpose
The purpose of this LED Matrix Bar Light is to create attractive stage background effects, pixel-style patterns, movement effects, and synchronized lighting sequences. It helps improve stage presentation, visual depth, and performance atmosphere during live events, concerts, cultural programs, and entertainment applications.
Key Features
• LED Matrix Bar Light with 14 Eyes
• 14 pcs LED lamp beads
• Single LED power: 3W
• Total power: 150W
• Input voltage: 90–240V, 50/60Hz
• Multiple channel modes: 13CH / 86CH / 75CH / 73CH / 5CH / 7CH
• Control modes: DMX512 / Sound / Master / Auto
• LED digital screen display
• RJ45 connector support
• Suitable for matrix effects, chase effects, and stage lighting patterns
• Suitable for auditorium, stage, event, and performance applications
Technical Specifications
• Product Type - LED Matrix Bar Light with 14 Eyes
• Input Voltage - AC90–240V, 50/60Hz
• Power Consumption - 150W
• Number of Lamp Beads - 14 pcs
• Single Power - 3W
• Channel Modes - 13CH / 86CH / 75CH / 73CH / 5CH / 7CH
• Display Mode - LED digital screen
• Control Modes - DMX512 / Sound / Master / Auto
• Connector - RJ45 connectors
• Installation - As per approved drawings and EIC instructions
Scope of Work
The scope includes supply, installation, laying, testing, commissioning, and programming of LED Matrix Bar Lights with 14 Eyes for stage and auditorium lighting applications.
The work includes fixture supply, installation as per approved drawings, DMX/RJ45 connectivity, addressing, channel mode configuration, programming, testing of control modes, calibration, commissioning, and final handover. All required tools, machinery, manpower, staging, consumables, fixing accessories, and installation materials shall be included for complete execution.
Quality & Safety Requirements
• Fixture shall be supplied as per approved technical specifications
• DMX512, Sound, Master, and Auto modes shall be tested
• All channel modes shall be verified during commissioning
• LED digital screen operation shall be checked
• RJ45 connectivity shall be verified
• Fixture shall be properly installed, programmed, calibrated, and commissioned
• Installation shall follow approved drawings and EIC instructions
• Any deviation from approved specification shall not be accepted
Training & Warranty
Comprehensive onsite training shall be provided to the end user for fixture operation, DMX control, channel selection, programming, safety handling, and basic maintenance.
All products shall be covered under the approved project warranty terms, or minimum three-year warranty if required in the tender specification.
