Detailed System Overview & Scope of Work

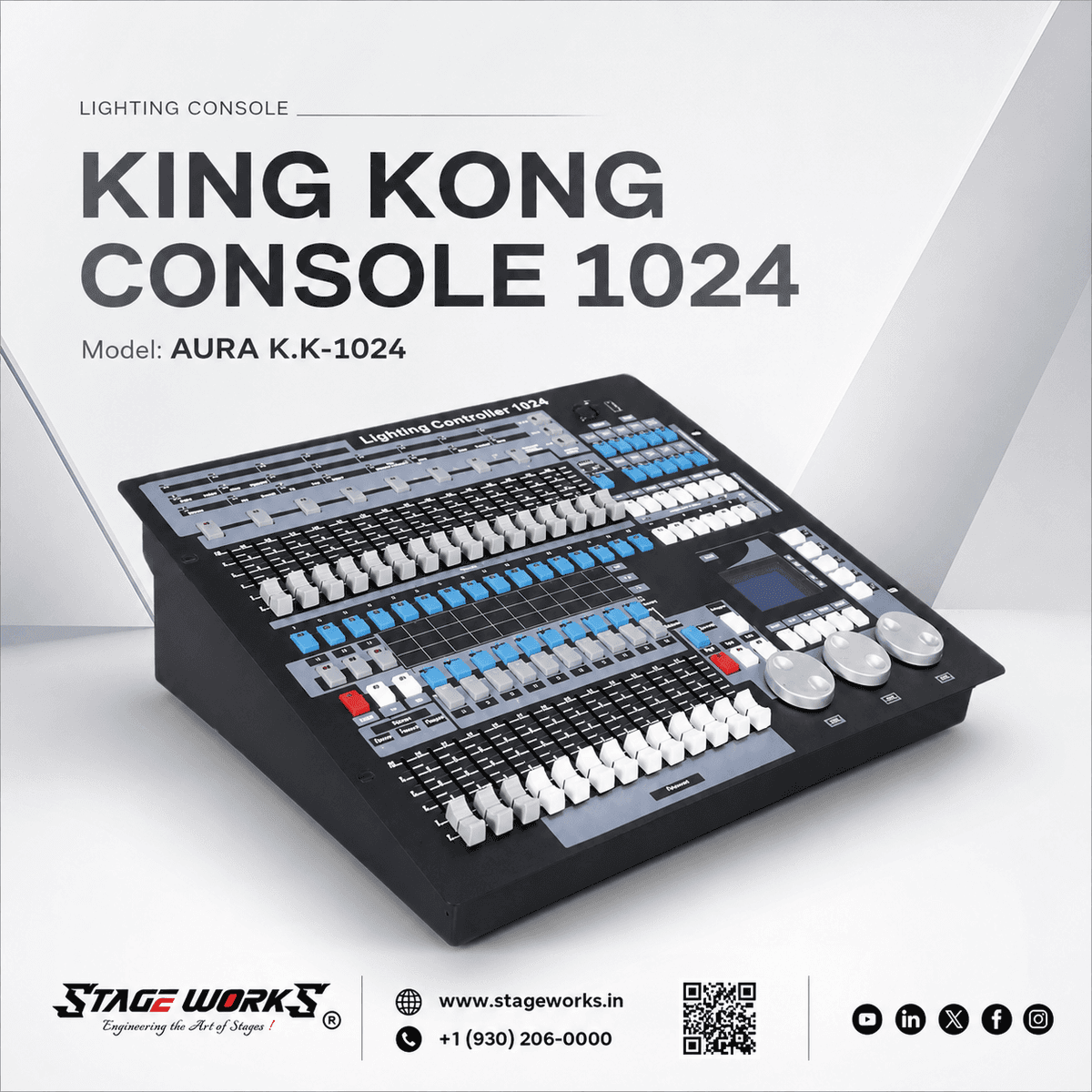

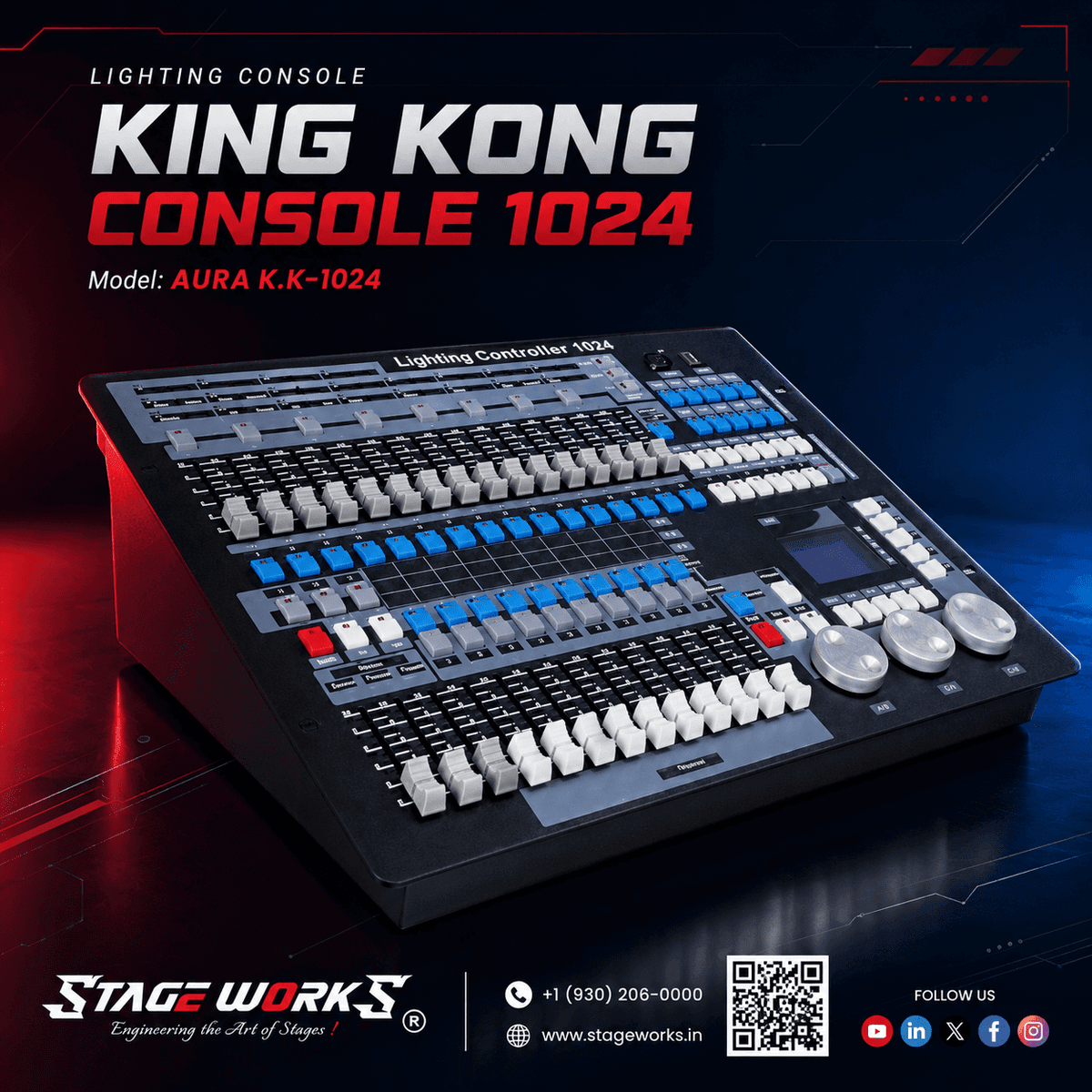

King Kong Console Lighting Console 1024
Product Overview
The King Kong Console Lighting Console 1024 is a professional stage lighting control console designed for auditoriums, theatres, studios, events, live performances, and indoor/outdoor stage lighting applications. It is used to control scanners, dimmers, moving lights, LED fixtures, and other DMX-compatible stage lighting equipment.
The console supports up to 1024 control channels with optically isolated signal output for stable and protected DMX signal transmission. It includes a built-in graphic trajectory generator, scene storage, U-disk backup, LCD display, and Pearl lamp library support, making it suitable for programmed lighting scenes and live show operation.
Purpose
The purpose of the King Kong Console Lighting Console 1024 is to provide centralized control for stage lighting fixtures and dimming systems. It allows the lighting operator to program scenes, control scanner movements, generate graphic effects, store multi-step scenes, and manage lighting playback during performances.
It is suitable for auditorium stage shows, cultural programs, school auditoriums, theatres, events, concerts, and multipurpose performance spaces.
Key Features
• Professional DMX lighting control console
• Supports 512 / 1990 standard operation
• Maximum 1024 control channels
• Optically isolated signal output
• Can control up to 96 scanners or 96 dimming channels
• Uses Pearl lamp library
• Built-in graphic trajectory generator
• 135 built-in graphics/effects
• Supports circle, spiral, rainbow, chase, and other movement effects
• Adjustable graphic parameters including amplitude, speed, interval, wave, and direction
• 60 repeat scenes for storing single-step and multi-step scenes
• Multi-step scenes can store up to 600 steps
• Backlit LCD display with Chinese and English language support
• Data remains saved after shutdown
• U-disk backup and software upgrade support
• Optional professional gooseneck work light
• Suitable for indoor and outdoor performance applications
• RJ45 connector support

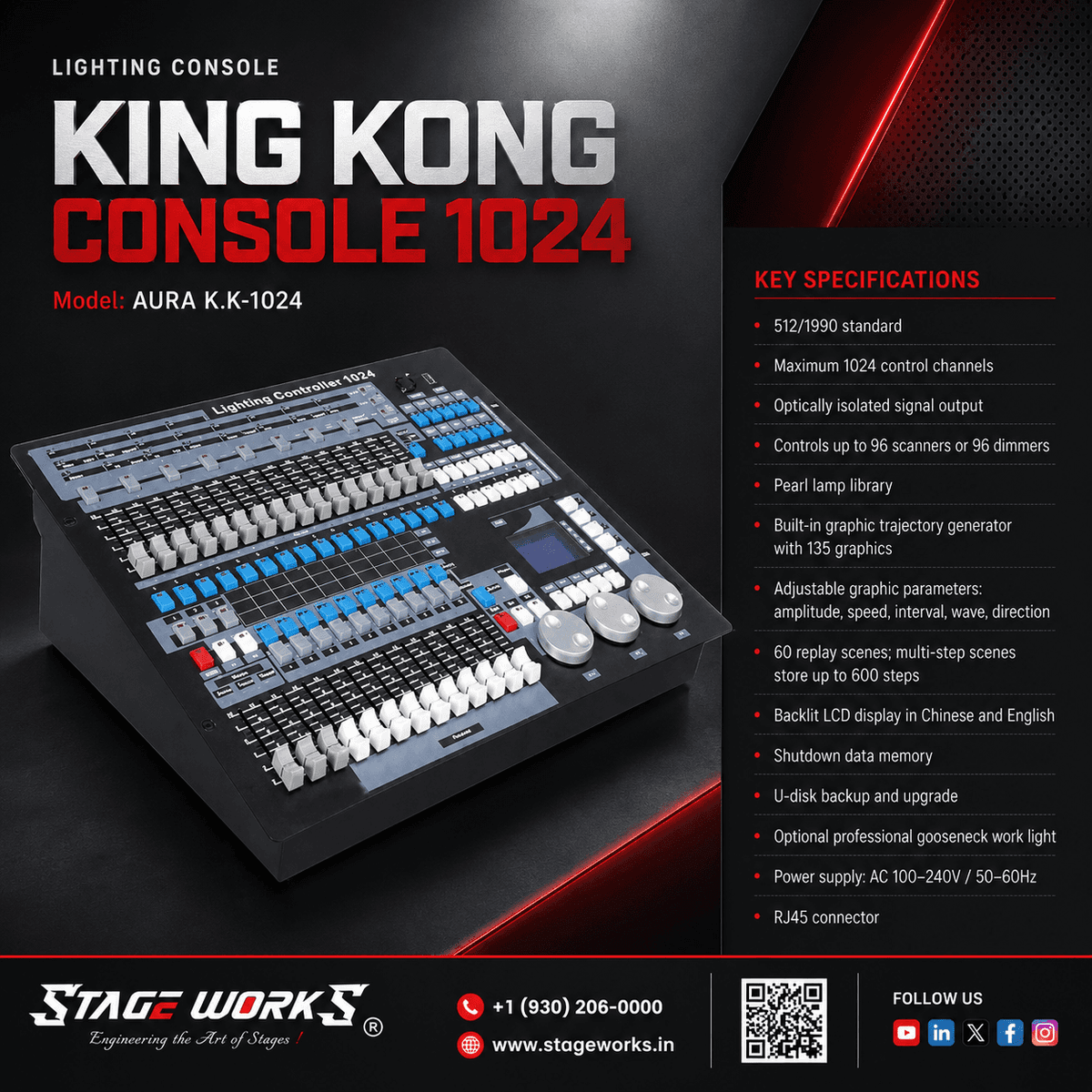

Technical Specifications
• Product Type - Professional Lighting Control Console
• Model - King Kong Console Lighting Console 1024
• Control Standard - 512 / 1990 standard
• Maximum Control Channels - 1024 channels
• Signal Output - Optically isolated output
• Maximum Fixture Control - Up to 96 scanners or 96 dimming channels
• Lamp Library - Pearl lamp library
• Graphic Generator - Built-in graphic trajectory generator
• Built-in Graphics - 135 graphic effects
• Graphic Effects - Circle, spiral, rainbow, chase, and other effects
• Graphic Parameters - Amplitude, speed, interval, wave, and direction
• Scene Storage - 60 repeat scenes
• Multi-Step Scene Capacity - Up to 600 steps
• Display - Backlit LCD display
• Language Support - Chinese and English
• Data Memory - Shutdown data retention
• Backup / Upgrade - U-disk backup and upgrade support
• Work Light - Professional gooseneck work light, optional
• Power Supply - AC100V–240V, 50Hz–60Hz
• Connector - RJ45 connector
• Application - Auditorium, theatre, stage, event, studio, concert, and performance lighting control
Scope of Work
The scope includes supply, installation, connection, configuration, testing, commissioning, and basic programming support of the King Kong Console Lighting Console 1024 for stage lighting control applications.
The work includes console placement, power connection, RJ45/DMX signal connection, fixture patching, scanner/dimmer control setup, scene programming, graphic effect setup, U-disk backup testing, output signal testing, and final commissioning with connected lighting fixtures.
All required tools, manpower, connectors, cables, accessories, consumables, and configuration support shall be included as per project requirement and Engineer-in-Charge instructions.
Quality & Safety Requirements
• Console shall support up to 1024 control channels
• Optically isolated signal output shall be tested
• Scanner and dimmer control functions shall be verified
• Built-in graphic generator and effects shall be checked
• Scene storage and multi-step scene playback shall be tested
• LCD display and language menu shall be verified
• Shutdown data retention shall be checked
• U-disk backup and upgrade function shall be tested where required
• Power supply shall be checked before commissioning
• Installation shall follow approved lighting control layout and EIC instructions
• Any deviation from approved specification shall not be accepted
Training & Warranty
Basic onsite training shall be provided to the end user for console startup, fixture patching, scanner/dimmer control, scene programming, graphic effect operation, playback control, U-disk backup, data saving, and basic troubleshooting.
The product shall be covered under the approved project warranty terms or minimum warranty period as required in the project specification.
