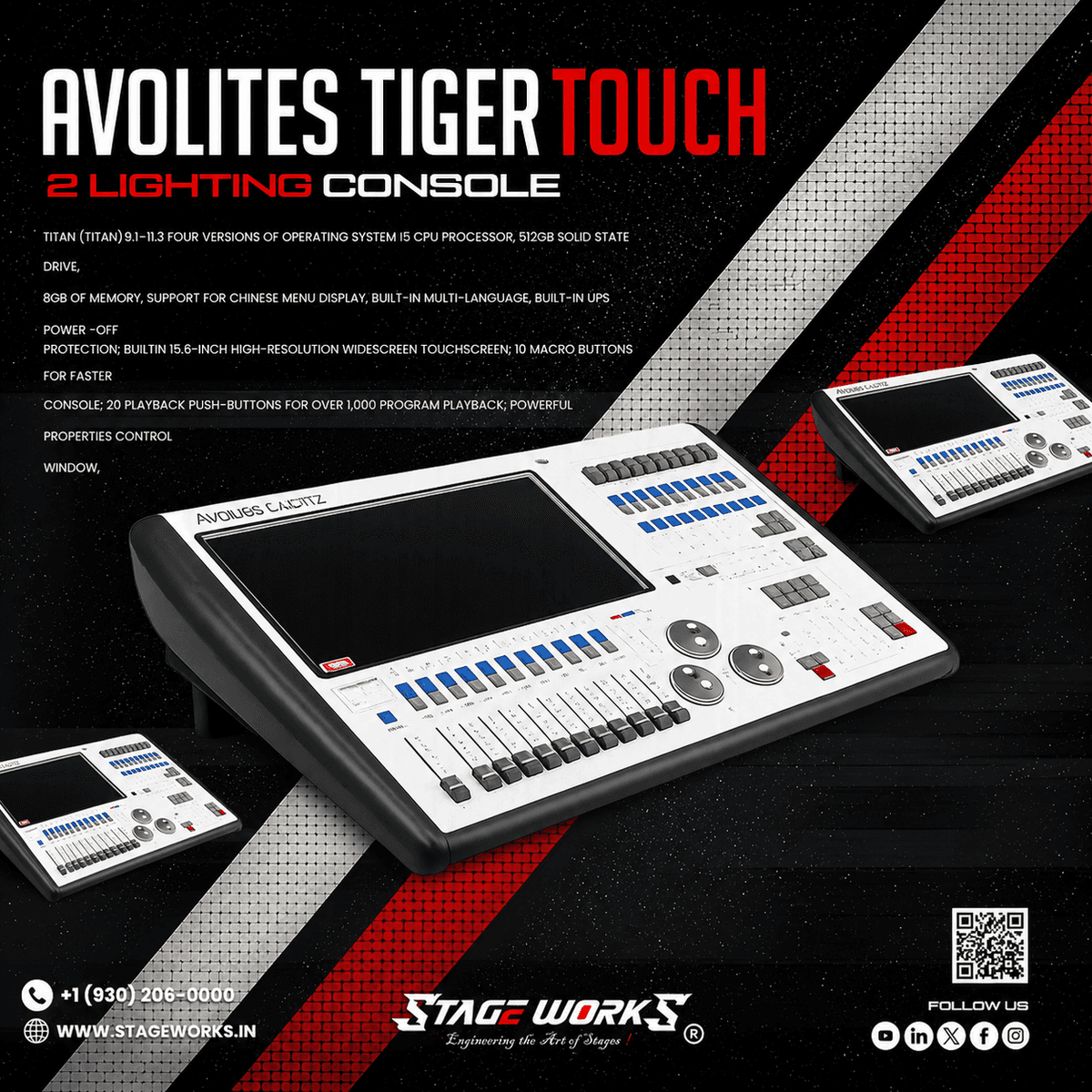

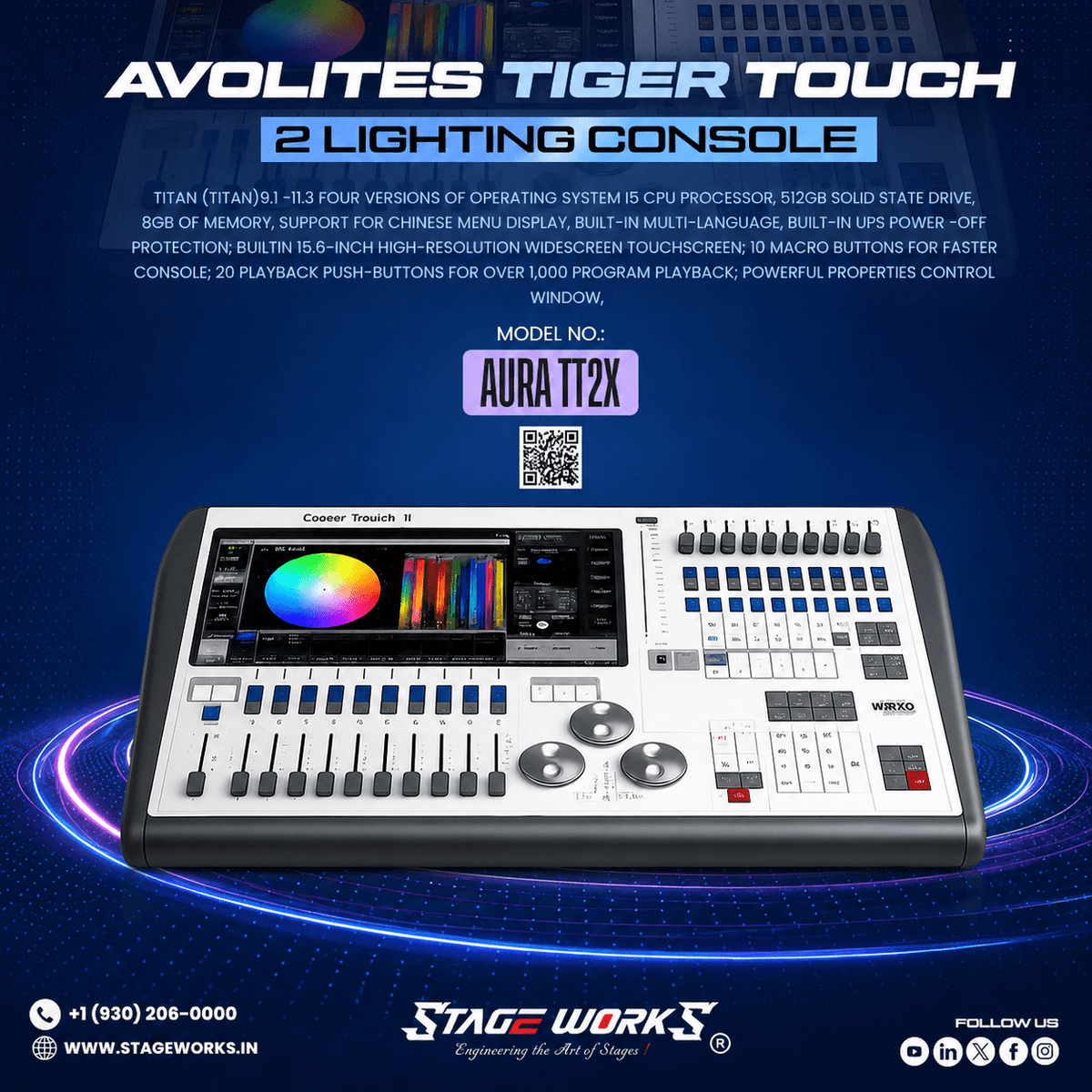

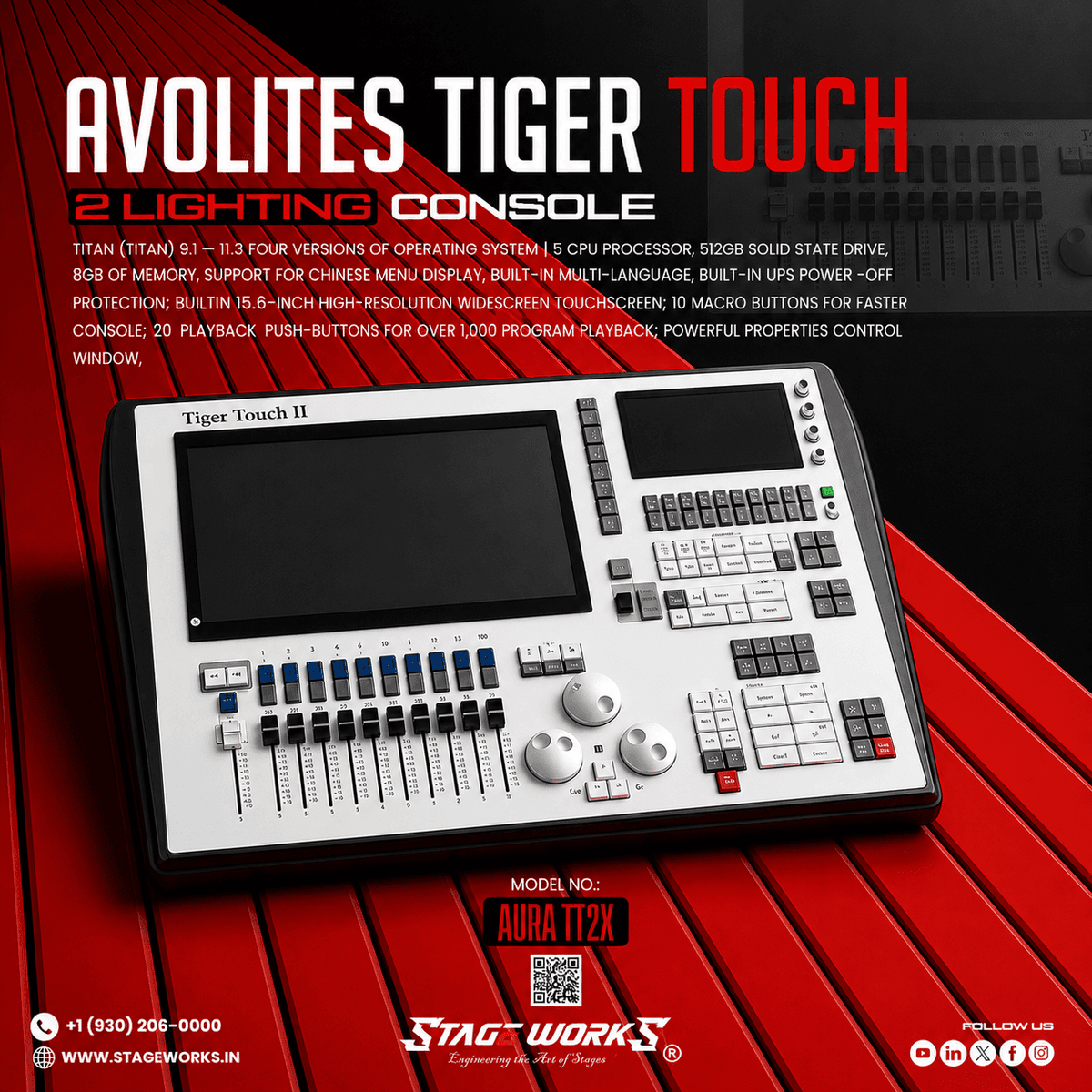

Avolites Tiger Touch II Lighting Console

Product Overview

The Avolites Tiger Touch II Lighting Console is a professional stage lighting control console designed for auditoriums, theatres, studios, concerts, live events, and performance venues. It is used to control moving heads, LED PARs, profile lights, wash lights, pixel bars, dimmers, Art-Net nodes, DMX splitters, and complete stage lighting systems from a single control desk.

The console operates on the powerful Titan operating system and supports advanced programming, cue playback, live show control, time code operation, effects generation, Art-Net networking, and multi-language menu display. It is suitable for professional lighting designers and operators requiring reliable, flexible, and high-capacity lighting control.

Purpose

The purpose of the Avolites Tiger Touch II Lighting Console is to provide centralized control of the complete auditorium stage lighting system. It allows the operator to program lighting scenes, control fixture movement, dimming, colour, effects, chases, cue lists, playback faders, and synchronized show sequences.

The console helps achieve precise lighting control, fast programming, smooth show operation, and professional stage presentation for live performances, cultural programs, concerts, theatre productions, and auditorium events.

Key Features

• Professional lighting control console for auditorium and stage applications
• Powerful Titan operating system
• Dual system version support: 9.1 and 11.3
• Intel Core i5 dual-core processor
• 120GB solid-state hard disk
• 4GB running memory
• Built-in 15.6-inch capacitive touchscreen
• Expandable to high-definition external touch display
• Standard 12 DMX output ports
• MIDI interface support
• 6144 DMX channels as standard
• Expandable up to 64 DMX output ports
• Expandable up to 32768 DMX channels
• Built-in UPS power supply
• UPS backup of approx. 30 minutes, customizable/expandable as required
• Can be expanded for 1 to 5 hours backup as per configuration
• Built-in graphic generator
• Built-in synchronized effects
• Built-in player time code for show programming
• 10 programmable macro buttons
• 20 playback faders
• Supports up to 1000 virtual playbacks
• CMY and RGB colour palette system
• Supports Art-Net network function
• Supports graffiti-style handwriting naming
• Supports Chinese menu and multiple languages
• Built-in thousands of fixture libraries
• Built-in fixture library editing software
• Built-in Visualiser stage simulation software
• Supports video and pre-programming
• Supports MIDI time code sound and light synchronization
• RJ45 connector support

Technical Specifications

• Product Type - Professional Stage Lighting Control Console
• Model - Avolites Tiger Touch II Lighting Console
• Operating System - Titan Operating System
• System Versions - 9.1 / 11.3
• Processor - Intel Core i5 Dual-Core Processor
• Storage - 120GB Solid-State Hard Disk
• Memory - 4GB RAM
• Touchscreen - Built-in 15.6-inch capacitive touchscreen
• External Display - Expandable to HD touchscreen display
• DMX Output Ports - 12 standard DMX output ports
• DMX Channels - 6144 DMX channels standard
• Expansion Capacity - Up to 64 DMX output ports / 32768 DMX channels
• MIDI Interface - Available
• UPS - Built-in UPS power supply
• UPS Backup - Approx. 30 minutes, expandable/customizable
• Macro Buttons - 10 programmable macro buttons
• Playback Faders - 20 playback faders
• Virtual Playbacks - Supports up to 1000 virtual playbacks
• Colour Control - CMY / RGB colour palette system
• Network Control - Art-Net supported
• Time Code - Built-in player time code and MIDI time code support
• Fixture Library - Built-in fixture library with editing software
• Visualisation - Built-in Visualiser stage simulation software
• Language Support - Chinese menu and multiple language support
• Connector - RJ45 connector
• Application - Auditorium, theatre, concert, live event, studio, stage, and performance lighting control

Scope of Work

The scope includes supply, installation, connection, configuration, testing, commissioning, and programming support of the Avolites Tiger Touch II Lighting Console for auditorium stage lighting control applications.

The work includes console placement, power connection, UPS checking, DMX output connection, RJ45/Art-Net network configuration, fixture patching, DMX addressing coordination, show file setup, cue programming support, playback fader setup, macro button configuration, effect programming, time code setup, and final testing with connected lighting fixtures.

The console shall be configured to control all compatible stage lighting fixtures, DMX devices, Art-Net nodes, and lighting control accessories as per approved lighting layout and Engineer-in-Charge instructions.

Quality & Safety Requirements

• Console shall be supplied as per approved model and technical specifications
• Touchscreen, playback faders, macro buttons, and control interface shall be tested
• DMX output ports and Art-Net network function shall be verified
• MIDI and time code functions shall be checked where applicable
• Built-in UPS backup shall be tested during commissioning
• Fixture library and patching functions shall be verified
• Visualiser and pre-programming functions shall be checked where required
• Console shall control connected fixtures accurately from programmed commands
• System shall be tested for dimming, colour, movement, effects, and playback operation
• Installation shall follow approved lighting control layout and EIC instructions
• Any deviation from approved specification shall not be accepted

Training & Warranty

Comprehensive onsite training shall be provided to the end user for console startup, fixture patching, DMX addressing, Art-Net configuration, cue programming, playback operation, macro programming, colour control, effects generation, time code usage, show file saving, backup, and basic troubleshooting.

The product shall be covered under the approved project warranty terms or minimum warranty period as required in the project specification.
