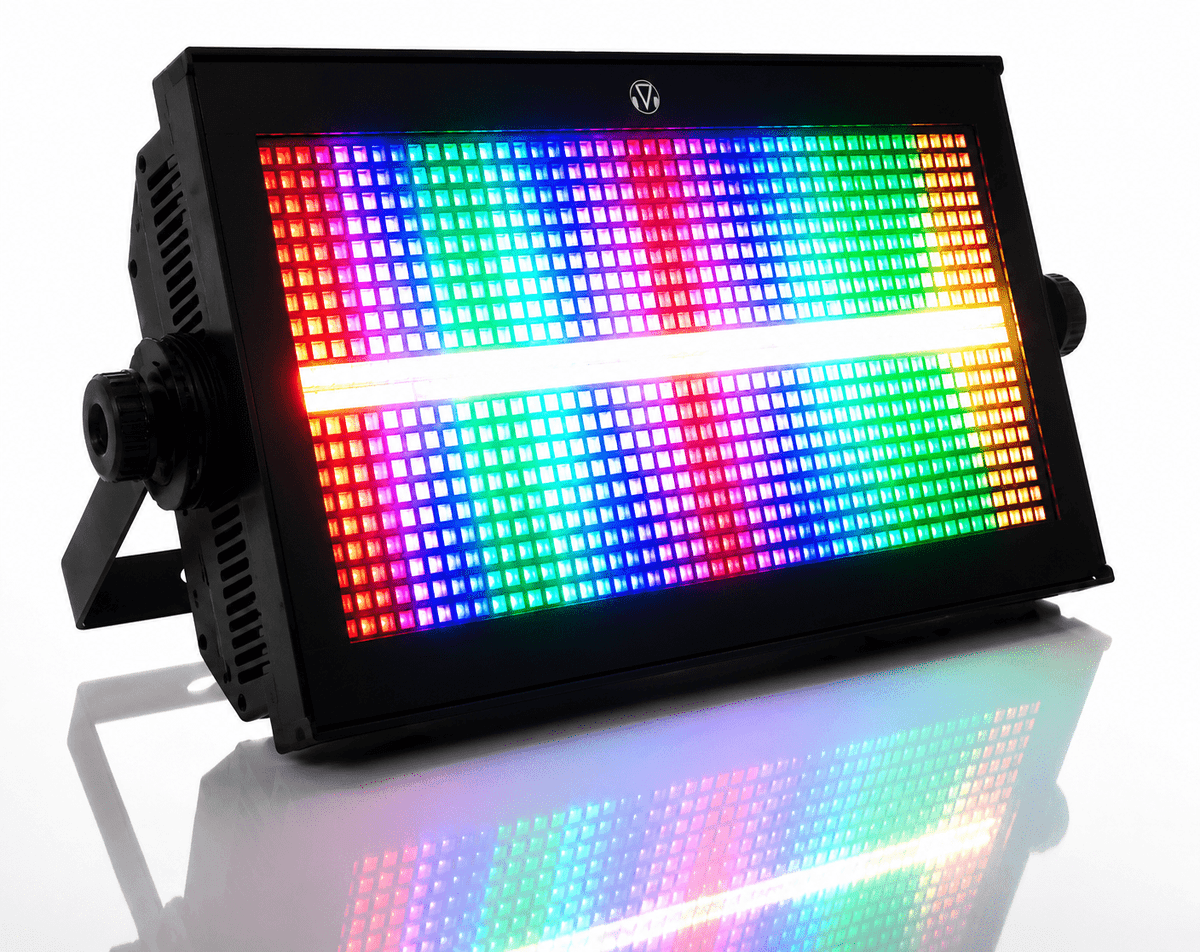

8+8 LED Strobe Light

Product Overview

The 8+8 LED Strobe Light is a professional auditorium stage lighting fixture designed to create dynamic stage effects, enhance visibility, and improve performance atmosphere. It is suitable for performing arts, auditoriums, theatres, cultural stages, concerts, and live event applications. The fixture delivers consistent, flicker-free, and uniform lighting across the stage while reducing harsh shadows and glare for better visual comfort for performers and the audience.

Key Features

• Designed for dynamic stage effects and auditorium lighting applications
  • Equipped with 4 advanced 50W COB 2-in-1 LED chips
  • Dual colour temperature: 5600K cool white and 3200K warm white
  • 32-bit 0–100% linear dimming for precise intensity control
  • 12-channel DMX control system
  • Strobe frequency range: 1–30Hz
  • Supports DMX512, self-propelled, master-slave, and voice control modes
  • RDM functionality for user-friendly operation
  • Multiple lights can be connected in series
  • Flicker-free and uniform lighting output
  • Reduces glare and harsh shadows
  • High efficiency with minimal maintenance
  • Low heat generation and no UV output
  • Durable chassis with IP20 rating
  • Fully calibrated and ready for immediate use
  • CE & RoHS certified
  • Minimum three-year unconditional warranty

Technical Specifications

• Product Type - 8+8 LED Strobe Light
  • Application - Auditorium stage effect lighting
  • LED Source - 4 pcs x 50W COB 2-in-1 LED chips
  • Colour Temperature - 5600K cool white / 3200K warm white
  • Dimming - 32-bit 0–100% linear dimming
  • DMX Channels - 12CH
  • Control Protocol - DMX512
  • Control Modes - DMX512 / Self-Propelled / Master-Slave / Voice Control
  • RDM Function - Available
  • Series Connection - Multiple fixtures can be connected in series
  • Strobe Frequency - 1–30Hz
  • Output - Consistent, flicker-free, and uniform stage lighting
  • Visual Comfort - Reduced glare and harsh shadow effect
  • Protection Rating - IP20
  • Performance - High efficiency, low heat, no UV output, low maintenance
  • Certification - CE & RoHS
  • Warranty - Minimum 3 years unconditional warranty
  • Installation - As per Architectural Drawings and EIC instructions

Scope of Work

The scope includes supply, installation, laying, testing, commissioning, and programming of 8+8 LED Strobe Lights for auditorium stage lighting applications. The contractor shall submit fixture placement drawings before commencement of work and shall be responsible for accurate design, installation quality, and final performance result.

The work shall be executed strictly as per Architectural Drawings and under the supervision of the Engineer-in-Charge, including all required tools, machinery, manpower, staging, consumables, DMX addressing, calibration, testing, programming, and final handover. The fixtures shall be delivered fully calibrated and ready for immediate use.

Training & Warranty

Comprehensive onsite training shall be provided to the end user for proper operation, control modes, basic programming, and maintenance of the installed equipment. Any deviation from the specified standards shall not be accepted; however, higher or improved specifications may be accepted if they meet the required standards and certifications. All products shall be covered under a minimum three-year unconditional warranty.
