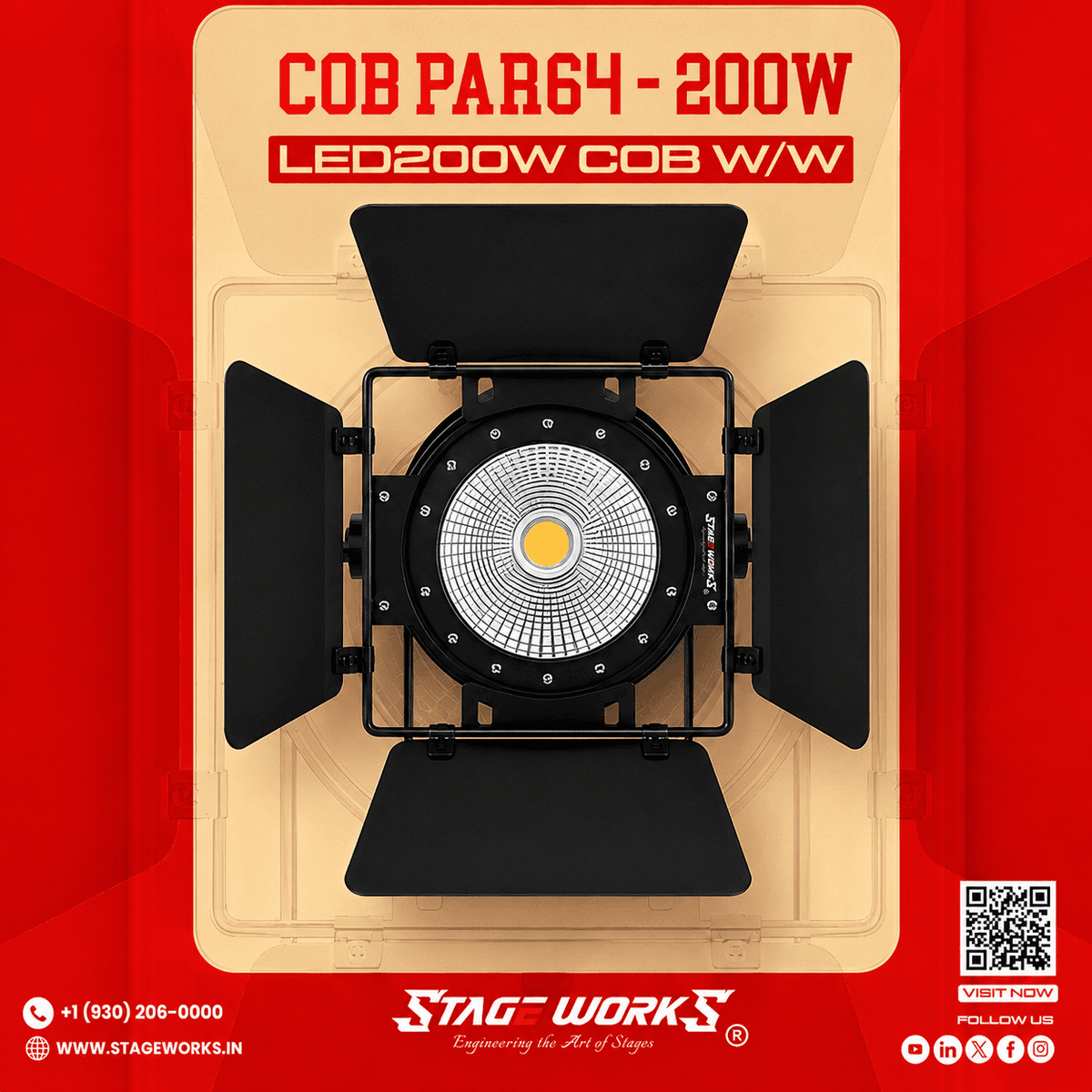

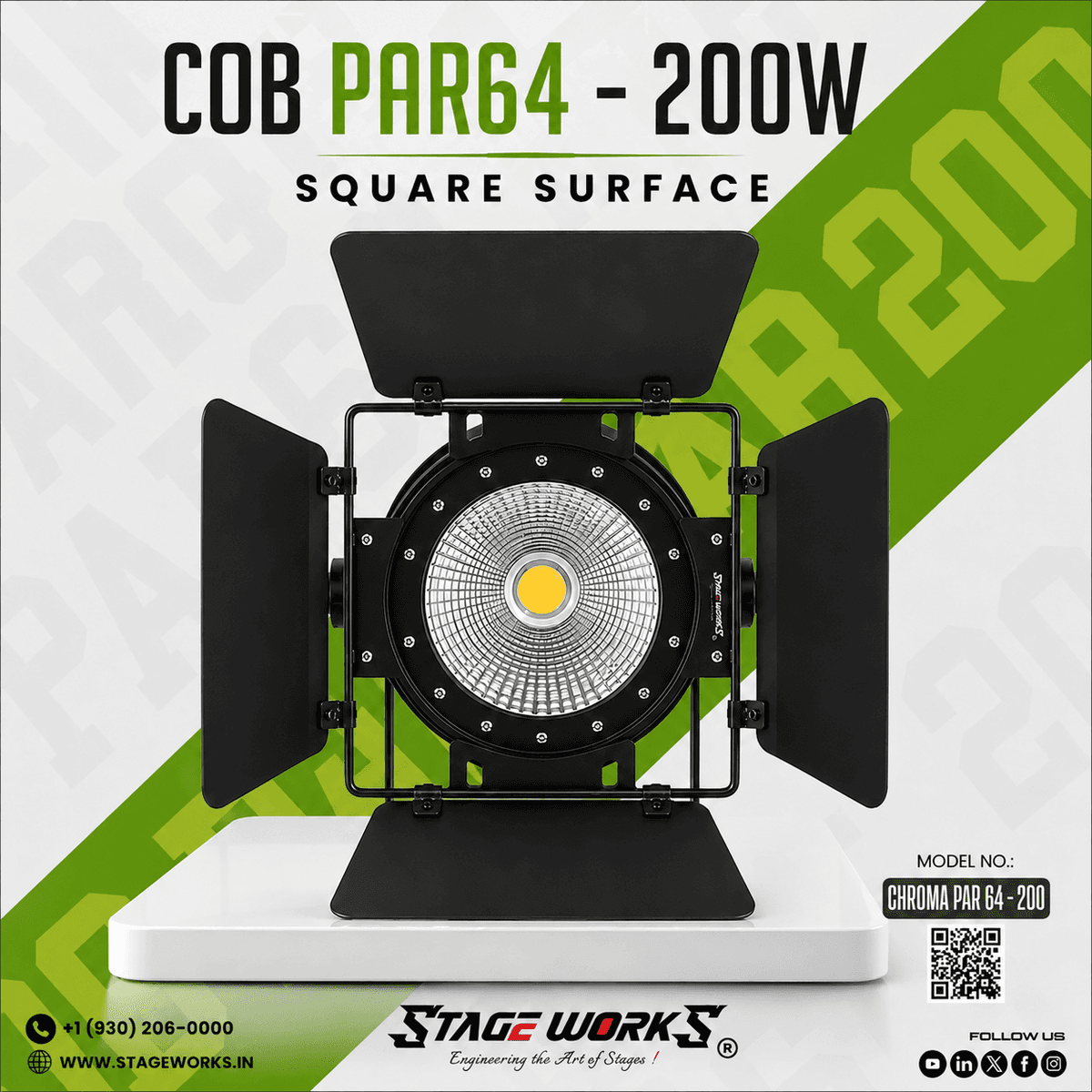

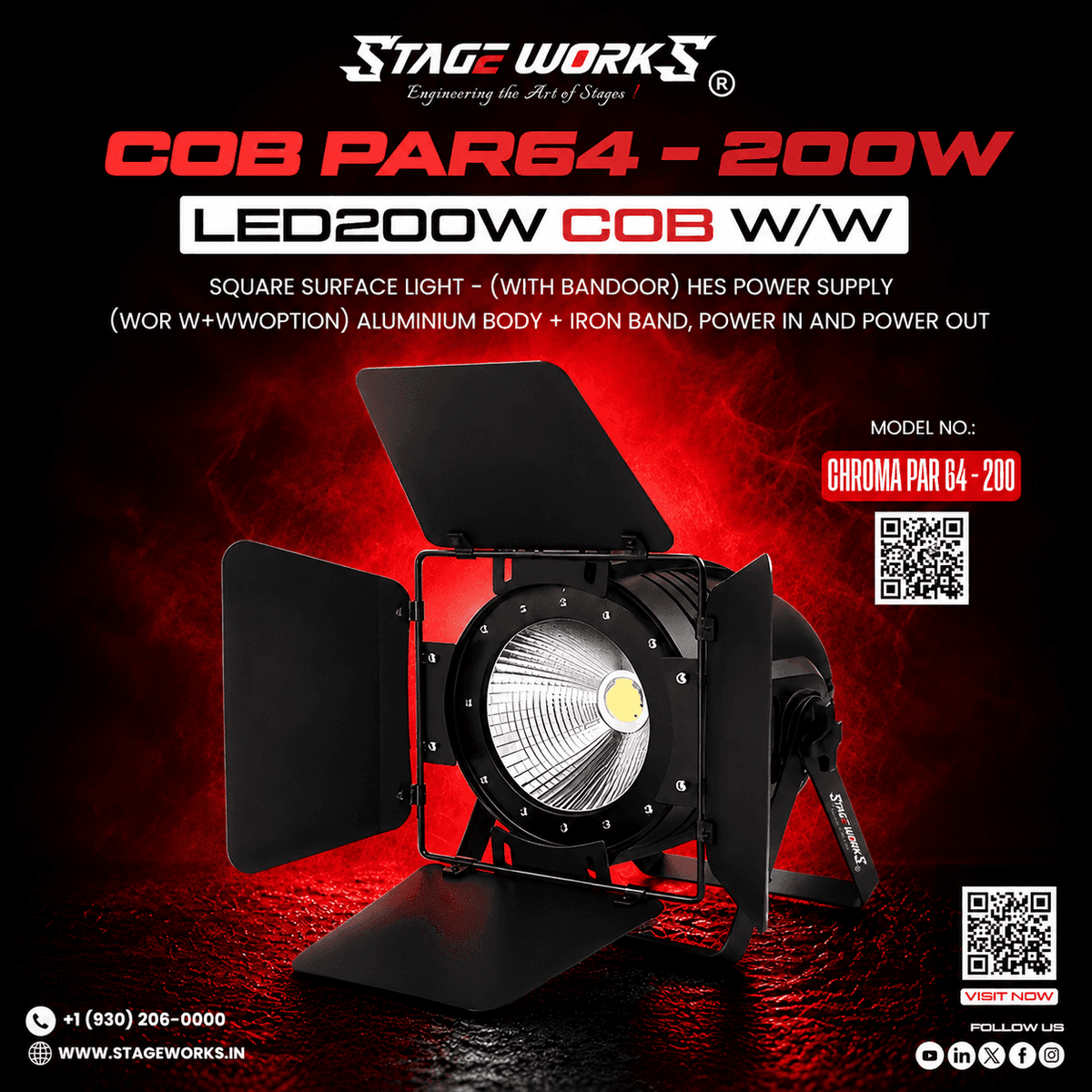

200W COB W/W Focusing Square Surface Light with Barndoor

Product Overview

The 200W COB W/W Focusing Square Surface Light with Barndoor is a professional stage and auditorium lighting fixture designed for soft wash lighting, focused illumination, and controlled light coverage. It is suitable for auditoriums, theatres, studios, performance stages, cultural halls, and multipurpose venues.

The fixture uses a 200W COB light source with cold white and warm white colour temperature options, providing clean, uniform, and flexible lighting output. The adjustable light blocking blade/barndoor helps control light spill and allows angle adjustment as per stage lighting requirements.

Purpose

The purpose of this focusing square surface light is to provide controlled white and warm white stage lighting for performer highlighting, stage wash, FOH lighting, side lighting, and general performance illumination. It helps create balanced visibility, soft lighting effects, and a professional stage atmosphere.

Key Features

• 200W COB W/W focusing square surface light
• Supplied with adjustable barndoor/light blocking blade
• 200W COB light source
• Cold white colour temperature: 5600K
• Warm white colour temperature: 3200K
• Light source lifespan: 50,000–100,000 hours
• Dimming frequency: 1000Hz
• Drive current: 700mA
• DMX512, self-propelled, master-slave, and voice control modes
• 6-channel DMX operation
• Luminescent angle: 45°
• Adjustable light blocking blade for angle control
• RJ45 connector support
• Silent fan cooling
• Suitable for auditorium and stage lighting applications

Technical Specifications

• Product Type - 200W COB W/W Focusing Square Surface Light with Barndoor
• Input Voltage - AC110V–220V, 50/60Hz
• Total Power - 220W
• Light Source - 200W COB light source
• Colour Output - Cold White / Warm White
• Cold White Colour Temperature - 5600K
• Warm White Colour Temperature - 3200K
• Light Source Lifespan - 50,000–100,000 hours
• Dimming Frequency - 1000Hz
• Drive Current - 700mA
• Control Modes - DMX512 / Self-Propelled / Master-Slave / Voice Control
• DMX Channels - 6CH
• Luminescent Angle - 45°
• Barndoor / Light Blocking Blade - Rotatable and angle adjustable
• Connector - RJ45 connectors
• Cooling System - Silent fans
• Installation - As per Architectural Drawings and EIC instructions

Scope of Work

The scope includes supply, installation, laying, testing, commissioning, and programming of 200W COB W/W Focusing Square Surface Lights with Barndoor for auditorium and stage lighting applications.

The work includes fixture supply, installation as per approved drawings, DMX/RJ45 connectivity, addressing, programming, testing of colour output, dimming, control modes, blade adjustment, calibration, commissioning, and final handover. All fixtures shall be delivered fully calibrated and ready for immediate use.

All necessary tools, machinery, manpower, staging, consumables, fixing accessories, and installation materials shall be included. The work shall be executed by a skilled and experienced team as per Architectural Drawings and Engineer-in-Charge instructions.

Quality & Safety Requirements

• Fixture shall be supplied as per approved technical specifications
• Cold white and warm white output shall be tested
• DMX512, self-propelled, master-slave, and voice modes shall be verified
• Barndoor/light blocking blade shall rotate and adjust smoothly
• Dimming and 6-channel operation shall be tested
• RJ45 connectivity and silent fan operation shall be checked
• Fixture shall be fully calibrated and ready for use
• Installation shall follow approved drawings and EIC instructions
• Any deviation from approved specification shall not be accepted

Training & Warranty

Comprehensive onsite training shall be provided to the end user for fixture operation, DMX control, barndoor adjustment, dimming, safety handling, and basic maintenance.

All products shall be covered under the approved project warranty terms, or minimum three-year warranty if required in the tender specification.
